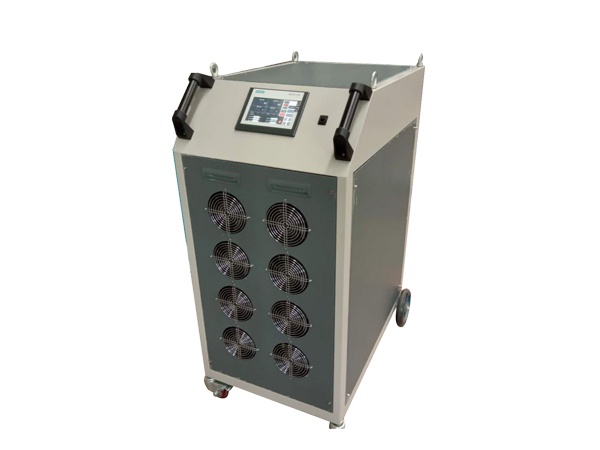

HV HIPOT GDZL-3kA 大型直流发电机 (0V-12V; 1A-3000A)


Input method: 3 phase 3 wire + ground wire

Voltage: 380V±10%

Frequency: 50Hz/60Hz±5 Hz


Rated power: 36kW

Voltage adjust range: 0V-12V

Current adjust range: 1A-3000A

Voltage output accuracy: 1.0%RD+1.0%FS

Current output accuracy: 1.0%RD+1.0%FS

Voltage display accuracy: 2.0%FS

Current display accuracy: 1.0%FS

Source effect: ≤0.1%FS

Load effect: ≤0.1%FS

Display resolution:

Voltage: 0.1V

Current: 100A

Respond time: ≤10ms (10%-90% load change)

Effectiveness: ≥90%

Working characteristics: Output can working long time

Operating display: Color touch screen display and operate

Protective function: Input phase loss, over voltage and under voltage protection, output over voltage protection, output over current protection, etc.

Output interface: RJ45

Safety characteristics:

Insulation resistance: ≥20MΩ

Withstand voltage: 2000V DC test 60 seconds, no arcing, breakdown

Earth resistance: ≤100mΩ

Noise: ≤65dB

Protection level: IP20

Cooling method: Forced air cooling

Working ambient:

Environment temperature: -20℃~35℃

Environment humidity: 10%~90%(non-condensation)

Altitude: ≤2000m

Dimension(L*H*W): 600*1100*700 mm

Weight: About 200kg
