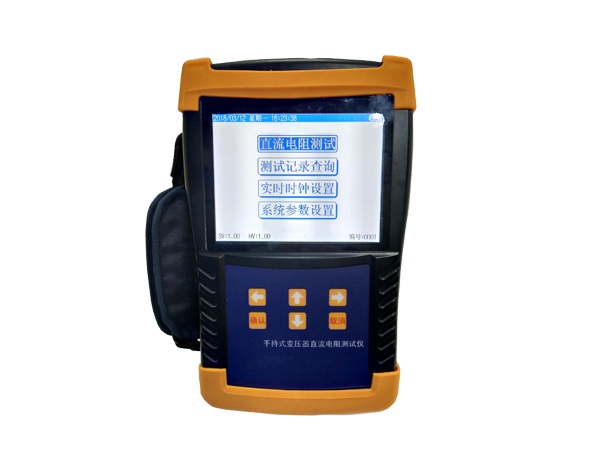

HV HIPOT GDZRC-10H 便携式直流变压器线圈电阻测试仪

  • 制造商: HV HIPOT
    Model: GDZRC-10H
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specification

DC winding resistance:

Current step: 1mA; 10mA; 100mA; 1A; 5A; 10A

Measurement range: 500Ω~50kΩ; 50Ω~2kΩ; 10Ω~200Ω; 100mΩ~20Ω; 10mΩ~1Ω; 500uΩ~200mΩ

• Accuracy: ±(reading*0.2%+2 digits)

• Min. resolution: 0.1uΩ

• Weight: 1.6kg (without test lines)

• Size: 246*156*62mm

Use conditions

• Power supply: 100~240VAC, 50/60Hz

Lithium battery:

• Charging voltage: 16.8V

• Charging current: ≤3A

• Charging time: about 4 hours

• Working time: more than 8 hours

• Working temperature: -10~50℃

• Relative humidity: ≤90%, no condensing
