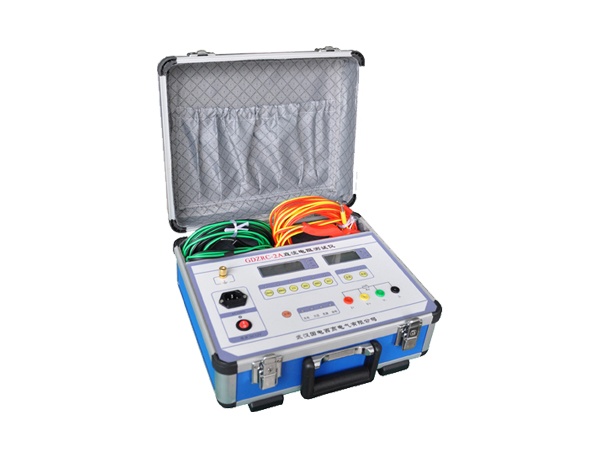

HV HIPOT GDZRC-2A 直流变压器线圈电阻检测机 (1mΩ~2kΩ)

Use conditions: Ambient temperature: 0℃~40℃; ≤85%RH

Measurement range: 1mΩ~20mΩ; 20mΩ~200mΩ; 0.2Ω~2Ω; 20~200Ω; 200Ω~2kΩ

Measurement accuracy: Class 0.5

Resolution: 1μΩ

Constant current source: 2.00A (1uΩ~2Ω), 0.20A (2Ω~20Ω), 0.02A (20Ω~200Ω), 0.002A (200Ω~2KΩ)

Power supply: DC 12~16.8V (2.2Ah), lithium-ion rechargeable battery; AC220V, 50Hz (±10%)

Power consumption: ≤15W

Size: 335*275*175mm

Weight: 2.8kg
