(Full specifications can be found on datasheet)
Accurate 0.5% to 4%
Wide range from 50 pF - 1000 µF (depending on model)
Resolutions as good as 1 pF (depending on model)
Broad choice of standard and optional models with many powerful features
Compact, convenient, and rugged
Now Includes a NIST Traceable Calibration Certificate
Panel Mounting, Shielded Case and Fuse Protection options available
Direct reading and Error proof
CS Series Capacitance Decade Box Basic Specifications
(See datasheet for full specifications)
|
Model
|
CS-300
|
CS-301
|
CS-301L
|
CS-300H
|
|
Type of Substituter
|
Capacitance
|
Precision Capacitance
|
Precision Low Capacitance
|
Precision High Capacitance
|
|
Accuracy
|
±(4%+3 pF)
|
±(1%+3 pF)
|
±(1%+3 pF)
|
±(4%+3 pF)
≥100 µF ± 6%
|
|
Decades
|
6
|
7
|
7
|
|
|
Range
|
0- to 99.999 9 µF
|
0 - 9.999999 μF
|
0 - 999.9999 μF
|
|
|
Resolution
|
100 pF
|
1pF
|
100pF
|
|
|
Components
|
1 - 900 pF: Mica 0.001 - 0.9 μF: Polypropylene
1 - 9 μF: Polyester 10 - 900 μF: Tantalum |
|||
|
Ratings
|
100 V (25 V for 10 - 100 μF)
|
100 V
|
100 V (25 V for
10 - 1,000 μF) |
|
|
Residual
|
≤42 pF (≤7 pF/decade)
|
≤49 pF (≤7 pF/decade)
|
||
|
Test Conditions
|
1 kHz; 1 Vrms; 120 Hz for ≥10 μF, series model; 23ºC. | |||
|
Physical
|
12 x 7.9 x 5.6 cm; 235 g
(4.7 x 3.1 x 2.2 in; 8.3 oz.) |
|||
The CS Series Capacitance Decade Box is a cost effective and commonly used capacitance decade box for production and educational applications.
The easy of use and 1% accuracy makes the CS Box ideal for daily verification of test equipment before measurements, troubleshooting in the field or on the factory floor.
The wide range of capacitance values from 50 pF to 1000 uF (depending on model) is indispensable in laboratory, R&D and teaching applications.

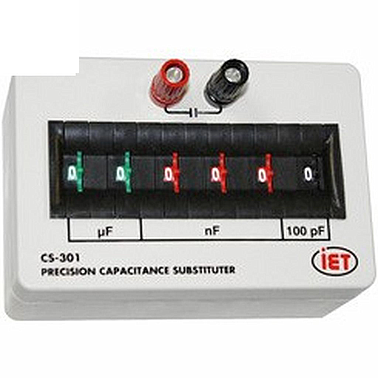

One nice feature of the CS Series is that it uses convenient side by side, color coded, switches allowing for direct reading of the capacitance value. There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use.
Made of high impact plastic and weighing less than a pound, these capacitance decade boxes are very portable and can reduce clutter on a busy lab bench. The CS Series utilizes a variety of highly stable film resistors for values less than 10 uF and tantalum capacitors for higher values.
