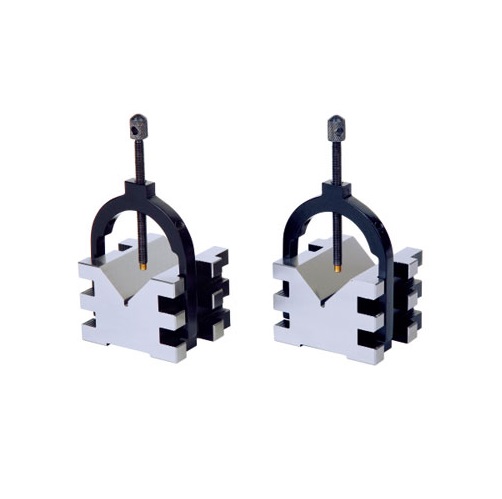

INSIZE 6802-1 V-Block Set (2 V-blocks/set)

Range of shafts (Ød): 65-70-50mm

Parallelism of both V grooves to top, bottom, left, right sides: 5µm

Squareness of both V grooves to front and back sides: 5µm

Height difference of a matched pair: 5µm

Hold cylindrical workpieces for inspection and machining

Two V-blocks per set

Made of alloy steel

Hardened to HRC60±2

Applied for cynlinder with diameter (Ød) : 5-50mm

Applicable for rectangular workpieces with thickness: ≤35mm
