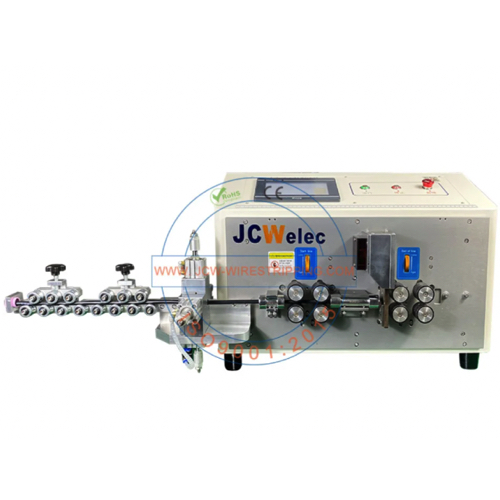

JCW JCW-CS05W 多芯电缆中切中心剥线机 (0.1 - 25 mm², 0.1 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 0.1 - 25 mm², 12 mm diameter

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length:

Front (right) side: 250 mm [partial stripping]

Rear (left) side: 120 mm [partial stripping]

Middle strip: 13 sections

Production rate: 1000 pcs/h by 100 mm wire length

Data library: 100 programs

Flat cable: Slit and strip, by changing straightener, guide, and blade

Multicore cable: Outer jacket stripping

Display: 7" color touchscreen, English / Chinese [other languages on request]

Cable feeding: 8 rollers

Compatible peripherals: Cable prefeeding machine, robot arm, conveyor belt

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: Machine: L 650 x W 580 x H 450 mm

Weight: 70 kg
