JeioTech DBR-10用于点胶解决方案的塑料制品

Manufacturer: JeioTech

Model: DBR-10

Order No.: AAAJ3021

Origin: Korean

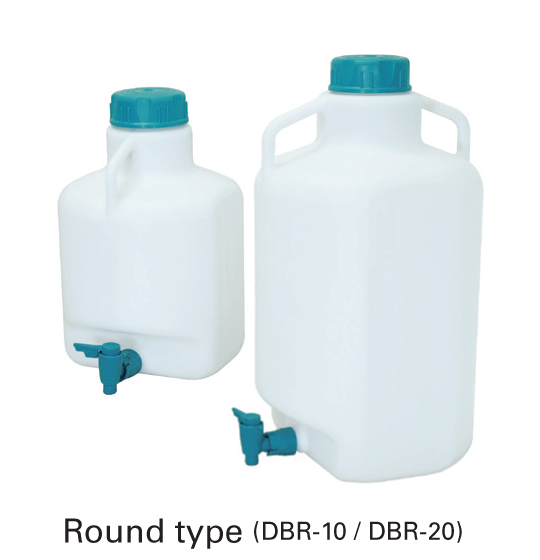

Description: Round type

Material (body / cap / spigot): HDPE (High-density polyethylene)

Volume (L / gal): 10 / 2.64

Tubing inner dia. (mm / inch): 15.9 / 5/8 (when used with provided spigot adapter : 6.35 to 7.94 / 1/4to 5/16)

Filling inlet inner dia. (mm / inch): 73 / 2.9

Dimension (WXDXH, mm / inch): 225 x 277 x 399

Net weight (kg / Ibs): 1.5 / 3.3

Brochure
