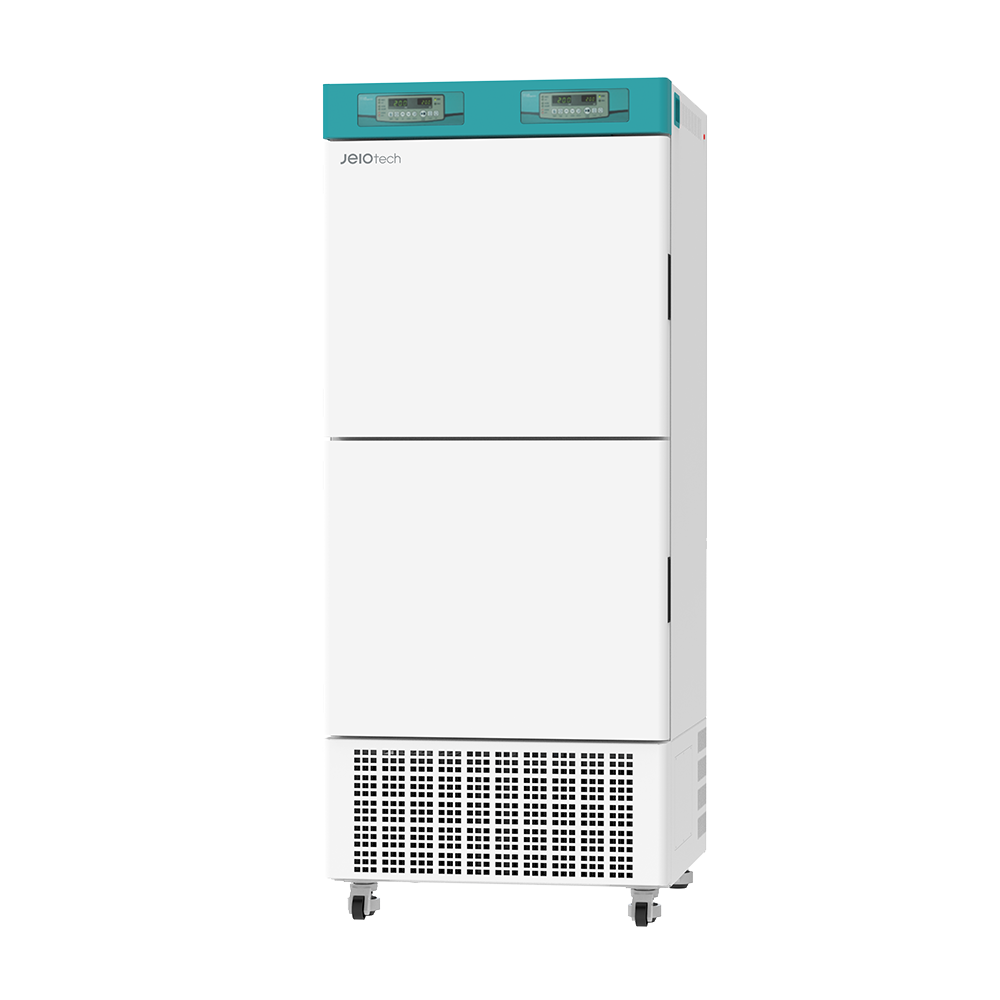

JEIOTECH IL-11-2C 实验室培养箱 (0~60℃, 2 Chambes, 300L)

Temperature    Range (℃ / ℉)    Amb. 0~60 /
                                Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
                                Variation at 37℃ (±℃ / ℉)    0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 600×500×500  /
                                 Overall (mm / inch)    760x760x1690  /
                                 Net Weight (kg / lbs)    350
Electrical Requirements (230V, 50 / 60Hz)    9A
Cat. No.   AAH28112K

Details

Operating Features

  • Temperature range: 0℃ to 60℃.
  • Independent temperature and timer control of each chamber using microprocessor PID.
  • Simple calibration and auto-tuning functions
  • Digital timer with Delayed ON/OFF function: ranging from 1 min to 99 hr 59 min.
  • Three most commonly used temperature settings programmable.
  • Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
  • Adjustable 3 step fan speed with defrosting time and period control.
  • Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
  • RS-232 interface.

Constructional Features

  • Four independently controlled 150L chambers (Model IL-11) merged into a single unit for space saving.
  • Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
  • Detachable shelves and rounded inner chamber corners allowing convenient cleaning.
  • Built-in casters for easy transport and installation.
Model IL-11-2C
Chamber Volume (L / cu ft) 300 / 21.1 [150 / 5.3 x 2 Chambers]
Refrigerator (Hp) 1/8 HBP x 2EA
Temperature Range (℃ / ℉) 0 to 60℃ / 0 to 140℉
Fluctuation 1) at 25℃ (±℃ / ℉) 0.1 / 0.18
Variation 1) at 25℃ (±℃ / ℉) 0.5 / 0.9
Dimension
(W×D×H)
Interior (mm / inch) 600x500x500 / 23.6x19.7x19.7 Per chamber
Exterior (mm / inch) 760x760x1690 / 29.9x29.9x66.5
Net Weight (Kg / lbs) 200 / 441
Electrical Requirements (230V, 60Hz) 9A
Cat. No. AAH28111K
Electrical Requirements (230V, 50Hz) 9A
Cat. No. AAH28112K
Electrical Requirements (120V, 60Hz) 16.5A
Cat. No. AAH28113U

1) Technical data according to DIN 12880.
