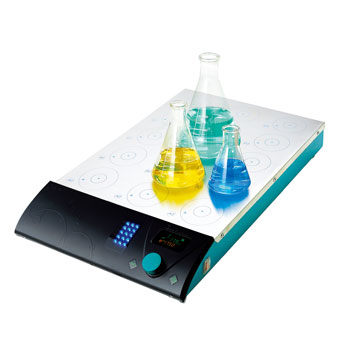

Jeiotech MS-32M 磁力搅拌器(多位置)

Speed Control    Feedback control witd PID
Speed Range (RPM)    30~2000
Motor Rating Input / Output (W)    2.9 / 1.6
Load, Max (kg / lbs)     30kg
Material    Poly propylene with non-slip silicon cover
Dimension (mm / inch, W×D×H)   254×434×81 mm
Electrical Requirements    AC 100 ~ 240V, 50 / 60Hz with power adapter
Weight (kg / lbs)    5kg
Protection Class (DIN EN 60529)    IP21

Detail

silicone pad

Silicone Pad



Additional Features of MS-M Models

  • User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands: single point, multiple point, whole row, whole column, etc.
  • Easy-to-read VFD and intuitive control panel.
  • Bright and vivid LED position indicating lamps.
  • Non-slip see-through silicon plate mat. (optional)
  • Chemical-resistant #304 grade stainless steel top-plate.
  • Uncompromising safety devices.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Wide top plate.
  • Non-slip strength rubber feet.
  • Sparkless, silent and durable BLDC motor.
  • Built-in thermal shutdown and current limit protection.
Model MS-23M MS-32M MS-33M
Technical Data Speed Control Feedback control witd PID
Stirring Positions 6 6 9
Speed Range (RPM) 30 to 2,000
Stirring Point Distance
(mm / inch, W×D)
117×170 / 4.6×6.69 117×90 / 4.6×3.54 117×90 / 4.6×3.54
Timer 1 min. to 99 hours 59 min.
Speed Display VFD
Motor Rating Input / Output (W) 2.9 / 1.6
Load, Max (kg / lbs) 30 / 66.14
General Data Dimension
(mm / inch, W×D×H)
377×434×81 /
14.84×17.09×3.19
254×434×81 /
10×17.09×3.19
377×434×81 /
14.84×17.09×3.19
Weight (kg / lbs) 6 / 13.23 5 / 11.02 7 / 15.43
Electrical Requirements AC 100 ~ 240V, 50 / 60Hz
Power Consumption (W) 45 45 54
Protection Class (DIN EN 60529) IP 21
Cat. No. KR plug AAH332115K AAH332215K AAH332315K
US plug AAH332115U AAH332215U AAH332315U
