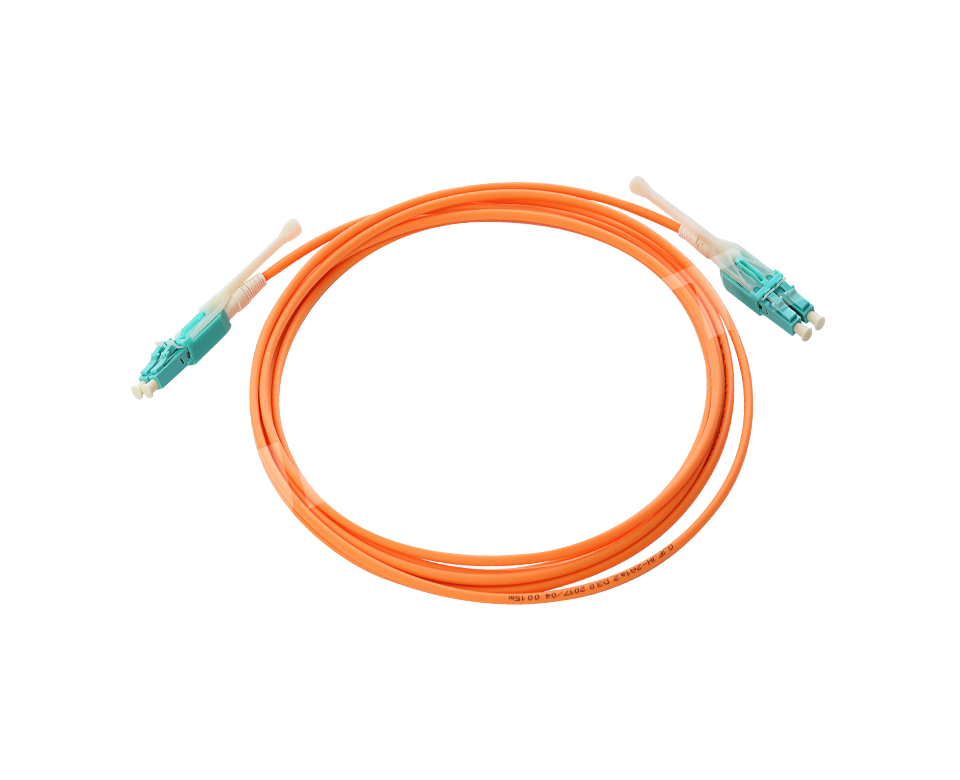

JPT LC-LC Uniboot跳线

Fiber mode: SM (G652D/G657A1/G657A2)

Connector Type: LC

End-face Finishing: PC/ APC/ UPC

Insertion Loss (dB): ≤0.30

Return Loss (dB): ≥45/ ≥50/ ≥60

Operating Wavelength(um): 1310, 1550

Fiber mode: MM (OM1/OM2/OM3/OM4)

Connector Type: LC

End-face Finishing: PC

Insertion Loss (dB): ≤0.30

Return Loss (dB): ≥35

Operating Wavelength(um): 850

Diameter (mm): Φ 0.9、Φ 1.6、Φ 2.0、Φ 3.0…

Exchangeability (dB): ≤0.20

Repeatability (dB): ≤0.20

Operating Temperature(℃): -25 ~ +70

Storage Temperature (℃): -40 ~ +85

Cable material: PVC, LSZH, OFNP, OFNR

Details

JPT optics produces the fiber opticJPT optics produces the fiber optic patchcords for high power applications, these patchcords feature special high power fibers, carefully prepared fiber endfaces, and specially designed fiber connector to ensure maximum power handing for your application.

The damage resistant SMA( HPSMA905 ) have inner tip of the ferrule is recessed creating a “well” so that nothing makes direct contact with the tip of the fiber.

Applications

• Telecommunication System

• Testing Facility

• CATV, LANs, WANs

• Active device system networks

• Data center system networks

• FTTx
