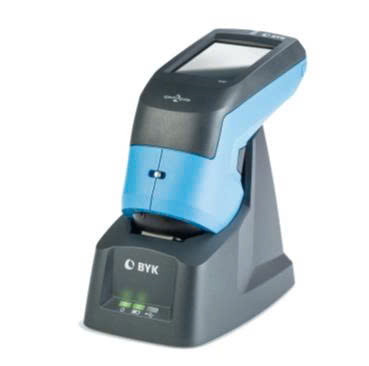

Karg spectro2guide Pro 45/0 色度计 (45/0 ~ 60°, 0 - 10 GU/10 - 100 GU)

Characteristics

Geometry colour: 45/0

Geometry gloss: 60°

Measurement area color [mm]: Ø 12

Measurement area gloss [mm]: 5x10

Colour

Measuring range [nm]: 400-700

Repeatability: 0.01 ΔE* (10 consecutive measurements on white)

Comparability: 0.1 ΔE* (average on 12 BCRA II tiles)

Color systems: CIELab/Ch; Lab(h); XYZ; Yxy

Color differences: ΔE*; ΔE(h); ΔEFMC2; ΔE94; ΔECMC; ΔE99; ΔE2000

Indices: YIE313; YID1925; WIE313; CIE; Berger; Color strength; Opacity; Metamerism

Illuminants: A; C; D50; D55; D65; D75; F2; F6; F7; F8; F10; F11; UL30

Observer: 2°; 10

Memory: 4000 Standards; 10.000 Samples

Gloss

Measuring range: 0 - 10 GU/10 - 100 GU

Repeatability: ± 0.1 GU/± 0.2 GU

Comparability: ± 0.2 GU/± 1.0 GU

Power supply: integrated accu, 7.2 V, 2350 mAh 16.92 Wh,100 - 240 V, 50/60 Hz

Fluoreszenz

Measuring range [nm]: 340 - 760

Fluoreszent Indices: ΔE Fl, ΔEzero

Jetness Indizes: My, Mc, dM, Gy, Gc, dG

Repeatability Jetness: ± 0.003 (for Y<0.5)

Dimensions

Width [cm] 11

Height [cm] 18.8

Depth [cm] 8.7

Weight [kg] 0.7
