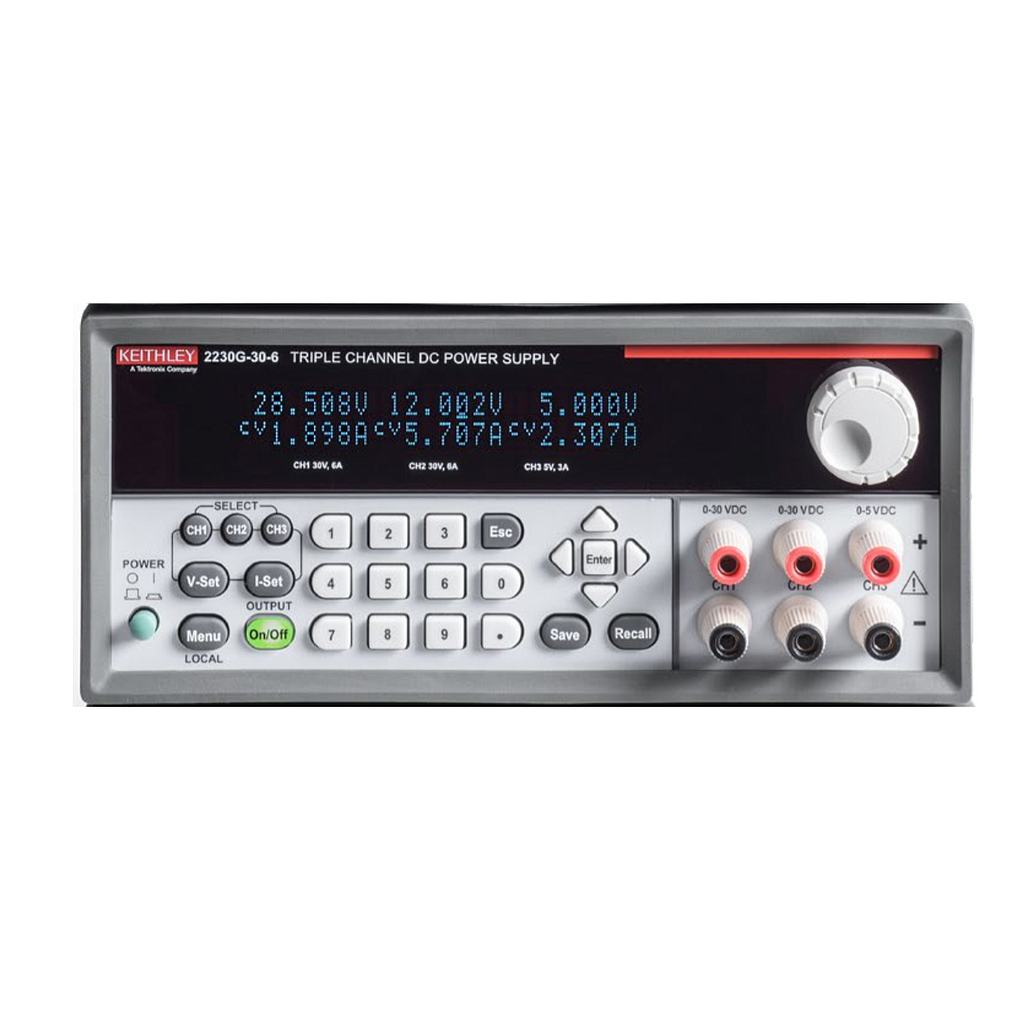

KEITHLEY 2230G-30-6 三通道可编程直流电源 (30V,6A,375W,10A Fuse)

Specifications (CH1 & CH2/ CH3)

DC Output Rating:

Voltage: 0 V to 30 V / 0 V to 5 V

Current: 0 A to 6 A / 0 A to 3 A

Load Regulation:

Voltage: ≤0.01% + 3 mV

Current: ≤0.01% + 3 mA

Line Regulation:

Voltage: ≤0.01% + 3 mV

Current: ≤0.01% + 3 mA

Ripple and Noise (20 Hz to 20 MHz, 23°C ± 5°C): 1 mVRMS

Setting Resolution: 1 mV, 1 mA

Setting Accuracy:

Voltage: ≤0.03% + 10 mV

Current: ≤0.1% + 8 mA/ ≤0.1% + 5 mA

Readback Resolution: 1 mV, 1 mA

Readback Accuracy:

Voltage: ≤0.03% + 10 mV

Current: ≤0.1% + 8 mA/ ≤0.1% + 5 mA

Communications: USB, GPIB, RS232

Power Source:

220 V AC Setting: 198 VRMS to 264 VRMS

Frequency: 50/60 Hz

Power Consumption: 1000 VAC

Dimensions:  104.2 mm high × 225.3 mm wide × 481.1 mm deep

Net Weight:  11.1 kg (24 lb.)

Supplied Accessories:

2230G-903-01A: Quick Start Guide

016214000 2230G-HRM: Harmonic Reduction Module (for 2230G-30-6 and 2230G-60-3)

116128300: Screw Terminal Block, 15 Terminals

174684100: USB Cable, 1.5 m (4.9 ft)

174717200: Line Cord (for 2230G-30-6 and 2230G-60-3)

Power Cord (See Power Cord Options)

Traceable Calibration Certificate
