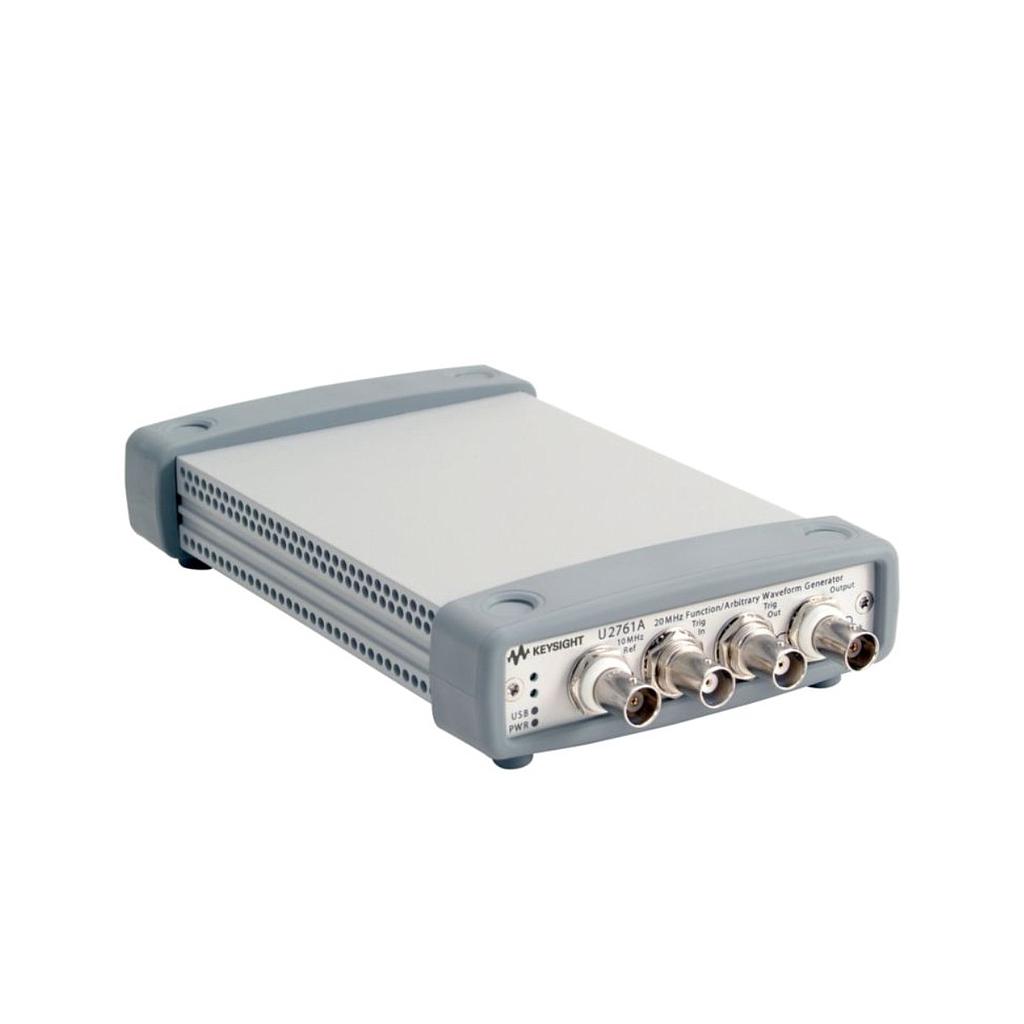

KEYSIGHT U2761A USB 模块化函数发生器 (20 MHz, 14-bit, 50 MSa/s, 64 Kpoint)

Maximum Frequency Range Sinewave: 20MHz

Minimum Frequency Range Sinewave: 1µHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform: 5 MHz, 20 MHz, 200 kHz

Minimum Frequency Range Square Pulse and Arbitrary Waveform: 1 μHz, 500 μHz

Maximum Frequency Range Triangle/Saw: 200kHz

Minimum Frequency Range Triangle/Saw: 1µHz

Maximum Operating Temperature: +50°C

Plug Type: Type G - British 3-pin

Length: 175mm

Input Impedance: 10 kΩ

Height: 25mm

Minimum Operating Temperature: 0°C

Frequency Range Square Pulse and Arbitrary Waveform: 1 μHz → 20 MHz, 1 μHz → 200 kHz, 500 μHz → 5 MHz

Output Amplitude: 632mV Pk-Pk

Width: 105mm

Interface Type: USB

Dimensions: 175 x 105 x 25mm

Weight: 476g

Output Impedance: 50Ω

Detail

See the datasheet to choose suitable options

Datasheet
