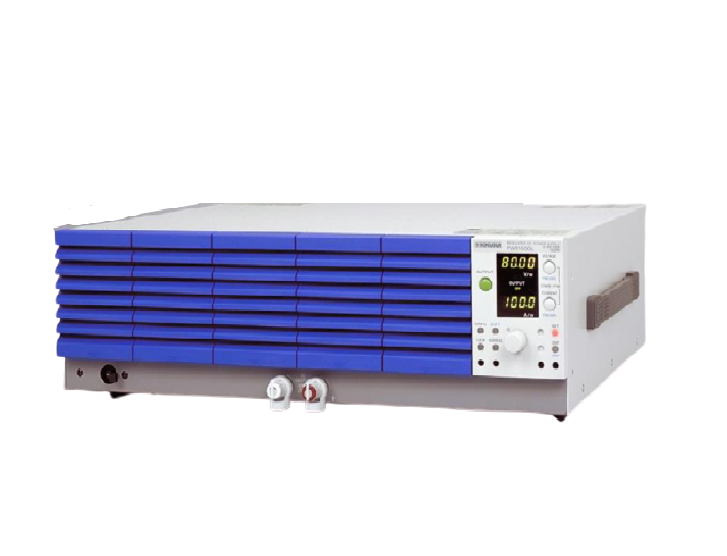

KIKUSUI PWR1600H 直流电源系统 (650V/ 8A)

Input voltage: 100 VAC ~ 240 VAC, 50 Hz ~ 60 Hz, single phase

Output:

- Power: 1600W

- CV:  0 ~ 650V

- CC: 0 ~ 8A

Ripple:

- CV: 40 mVrms

- CC: 40 ms

Measuring meters: V, A

- Maximum display: 99.99 (L type), 999.9 (M & H types)

- Display error: ±(2 % of rdng + 5 digits)

Protection functions: Over voltage, over curent, over power, over heat, power limit

Digital control: TP-BUS

Ground voltage: ±600Vmax for the L & M types

                            ±1000Vmax for the H types

Accessories: Operation manual, Power cord, OUTPUT terminal cover, TP-BUS connector, ...
