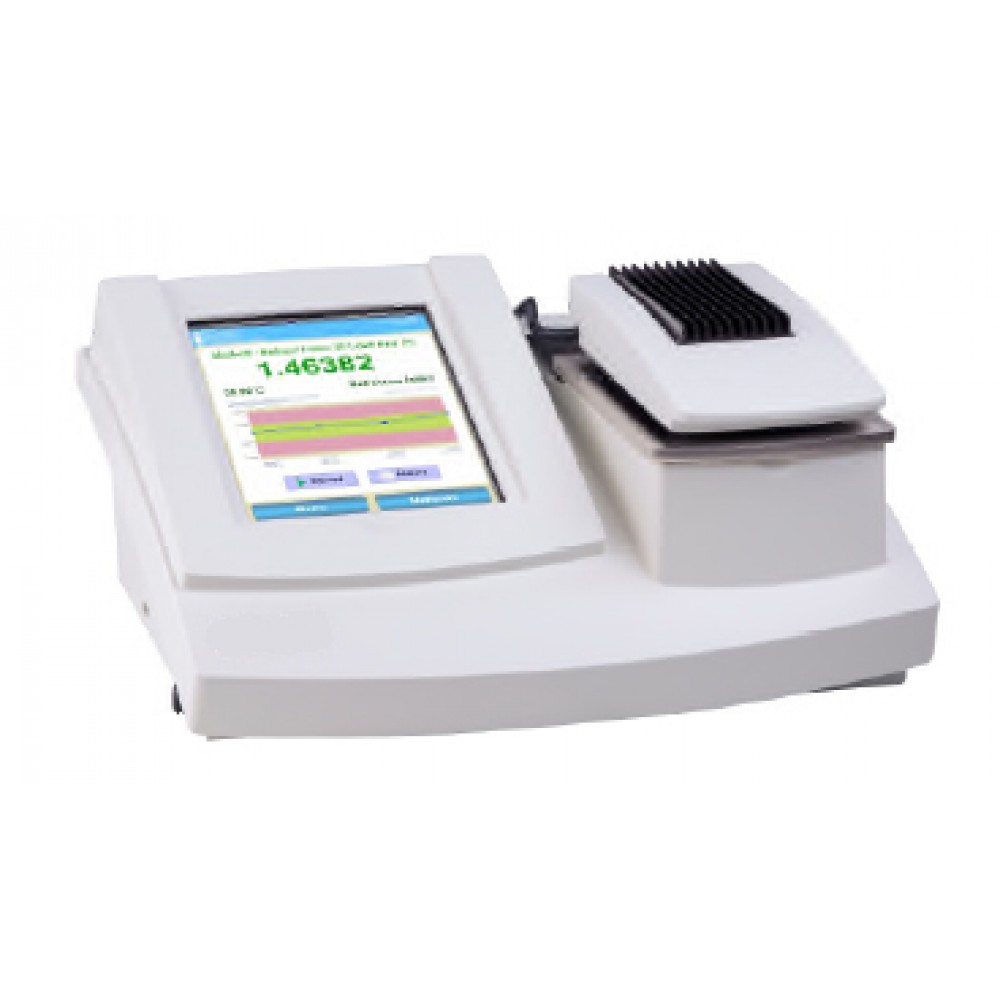

The Koehler Automatic Refractometer uses precision optics and superior image analysis to extend the repeatability and accuracy of refractive index measurements for petroleum products.
Specifications
- Measurement scales: Refractive Index (RI), BRIX (% sucrose), Temperature Corrected RI, Temperature Corrected BRIX, Ten User-Programmable Scales
- Illumination: 589nm light emitting diode with interference filter
(estimated life: 100,000 hrs)
- Range: Dissolved solids: 0 to 95% solids
- Refractive index: 1.29000 to 1.70000nD (nD - Sodium D-Line Refractive Index)
- Readability: Standard mode: 0.1% Solids 0.0001nD
Extended mode: 0.01% Solids 0.00001nD
- Precision: Standard mode: ±0.02% Solids ± 0.00002nD
Electrical requirements: 100-240V 50/60Hz
Dimensions
- lxwxh,in.(cm): 151⁄2x10x41⁄2 (391⁄2x251⁄2x111⁄2)
- Net weight: 23 lbs (101⁄2kg)
Additional accessories
- K27504 Calibration Fluid, Certificate of NIST traceability included.
- K27505 Refractometer Communication Software Package, with real-time data export into Microsoft® Excel
