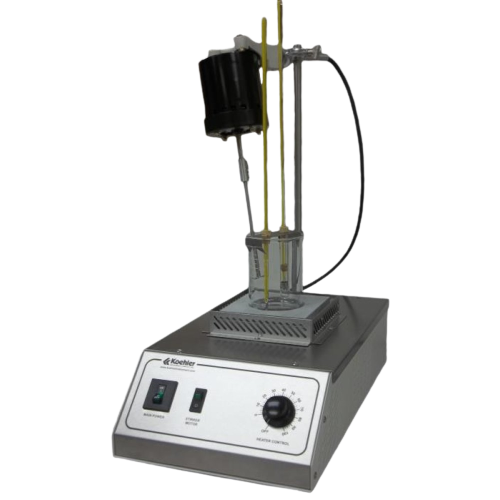

Koehler K19494 Dropping Point Apparatus (288°C)

Performs dropping point determinations on lubricating greases at temperatures of up to 550°F (288°C).


- Conforms to the specifications of:

ASTM D566, D4950; IP 132; ISO 2176; DIN 51801; FTM 791-1421; NF T 60-102

- Maximum temperature: 550°F (288°C)

- Bath medium: A high temperature heat transfer fluid having a flash point in excess of 400°C is recommended. Silicone fluid (P/N 355-001-002 — page 8) is suitable.

Electrical requirements: 220-240V 50/60Hz. Single Phase, 3.4A


- lxwxh,in.(cm): 9.5 x8x22.5 (24x20x57)

- Net weight: 24 lbs (10.9kg)

Included accessories

- Grease Cup, chromium plated brass

- Test Tube with indentations

- Cork Ring Guide

- Thermometer Corks (2)

- Thermometer Depth Gauge

- Polished Metal Rod

- Connecting Hardware

Additional accessories

- 250-000-02F ASTM 2F Thermometer. Range: 20 to 580°F

- 250-000-02C ASTM 2C Thermometer. Range: –5 to +300°C

- K194E7 Cup Plug Gauge

- Checks conformity of test cup with specifications

- Per Fig. 1, ASTM D566 and Fig. 1-E7, ASTM D2265

- K194E6 Polished Metal Rod

- K194EA Grease Cup

- K19492 Test Tube with indentations

- K19493 Thermometer Cork

- K19499 Cork Ring Guide
