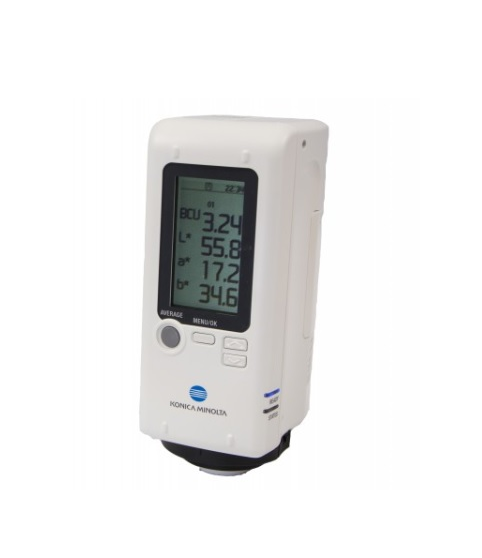

KONICA MINOLTA CR-10 Plus Color Reader

Used to check color differences between two samples.

Complies with DIN 5033 Teli 7/ JIS Z8722 condition d/ ISO 7724/1 / CIE No. 15/ ASTM E1164

Viewing/ illumination angle: 8/d (8° viewing angle / diffuse angle: Reflectance factor)

Displays measurement values Δ (Lab*), Δ (LCH*), ΔEab (CIE 1976)

Display range: 1 … 100 L

Measurement area size: 8 mm

Measurement conditions:

Observation: CIE 1976 standard observation

Illumination: D65 standard illumination

Repeatability: Standard deviation not exceeding DE*ab 0.1 (Measurement condition: average measurement of the white standard plate)

Measurement time: approximately 1 second

Light source: Silicon photodiode (6 pcs)

Illumination: Xenon lamp

Data memory of up to 1000 measurement values

Power source: 4 AA batteries or adapter (optional)

Operating environment: 0 … 40°C/ max. 85% RH

Instrument dimensions: W66 x H158 x D85 mm

Weight: 420g (without batteries)

Included:

1. Soft Case CR-A94

2. Target Mark (Ø8mm)

3. Protective Cap CR-A93

4. Wrist Strap CR-A73

5. Usb Cable IF-A25

6. AA- size batteries (x4)
