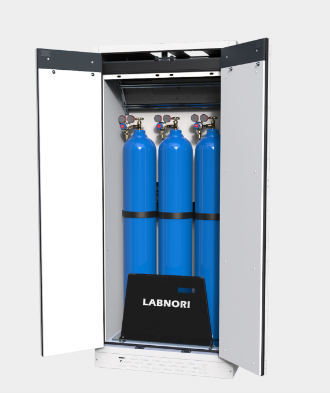

Labnori GCC90103 90分钟台下易燃物储存柜 (3x 50 Litre Gas Cylinders; 900x615x2050, 520 kg)

Color: Light Grey

50 Litre Gas Cylinders: 3 pcs

Number of Doors: 2

Door Type: Manual Door

Dimensions, Exterior: 900x615x2050(W*D*H)

Dimensions, Interior: 790x430x1700(W*D*H)

Extraction air: 75 DN

Minimum exhaust air quantity 10 times: 4 m³/h

Complies with EN14470-2: Yes

Fire Resistance: 90 minutes

Net Weight, kg: 520 kgs

Details

EN14470-2 Compressed gas cylinder cabinets for the storage of pressurised gas cylinders in working areas. The gas cylinder cabinets of the G-LINE enable the safe storage and removal of gas cylinders in accordance with regulations in workrooms, The gas cylinder cabinets offer maximum protection and convince with a fire resistance of up to 90 minutes.


1. Even ventilation and extraction of the entire cabinet interior

2. Integrated air ducts ready for connection (DN 75) to a technical exhaust system

3. The potential formation of explosive atmospheres or harmful vapours is safely prevented

4. Door lockable with cylinder lock, the cabinets can be integrated by the customer into an existing locking system

5. Includes mounting rails, cylinder retainers with matching tension belts and a rolling ramp

6. The integrated, manually operated rolling ramp facilitates the storage and removal of compressed gas cylinders

7. With the comfort interior, the rolling ramp is conveniently operated by a lever.

8. Large area for flexible lead-through possibilities on the top of the cabinet, no additional insulation of piping necessary
