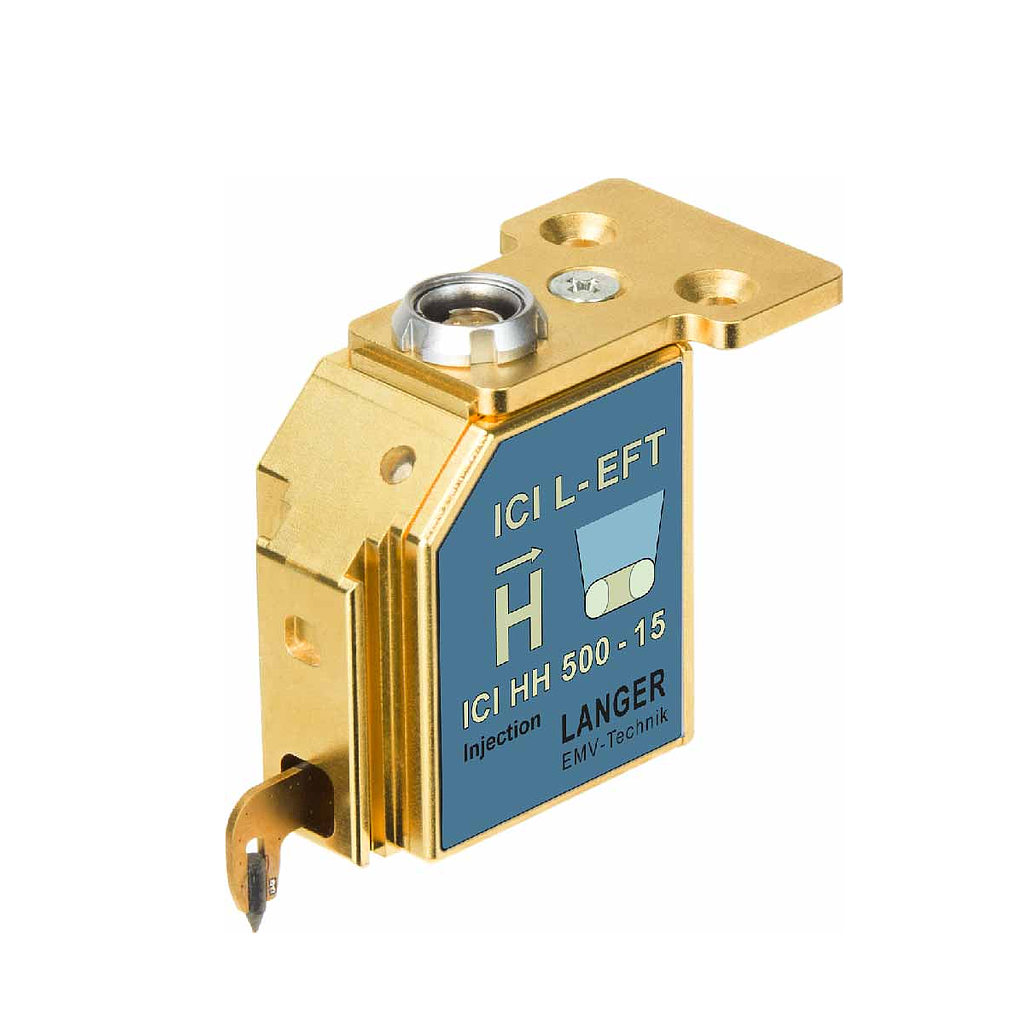

LANGER EMV-Technik ICI HH500-15 L-EFT 脉冲磁场源
制造商: LANGER EMV-Technik Model: ICI HH500-15 L-EFT - 联系
Technical parameters:
Probe head dimensions: Ø 500 µm
magnetic flux density (typ.): 50 mT
Pulse parameter:
Rise time: < 2 ns
Repetition frequency: 0.1 Hz - 20 kHz
Polarity (set by software): + / - / alternating
Measuring output: 50 Ω
Trigger-pulse delay (Bypass Mode - Delay Line):
min. Trigger-pulse delay (typ.): 70 ns
max. Trigger-pulse delay (typ.): 420 ns
max. Jitter (typ.): ± 1 ns
Supply voltage: BPS 202
Weight: 70 g
Sizes (L x W x H): (26 x 43 x 53) mm
