Lisun JL-X 防水试验系统

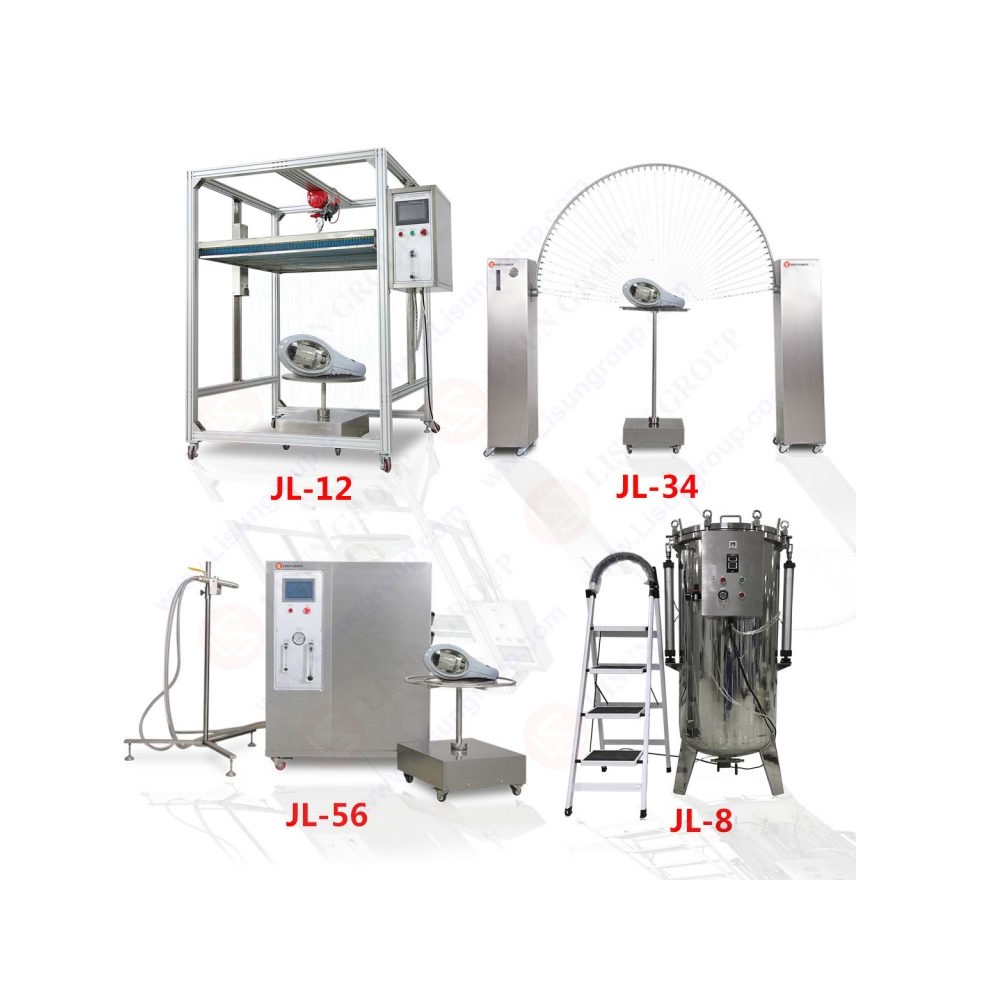

The system inlcudes

• Drip Box (JL-12)

The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm (LxWxH). The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.


• Swing Pipe Water Spray Test Equipment (JL-34)

It is for IPX3 and IPX4 test. The semi-diameter of swing pipe is 1meter (Any other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other size according to the diameter of the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm which controlled by PLC panel.


• Waterproof Jet Test Device (JL-56)

With water supply device size is 1000x1000x600mm, the nozzle diameter is ф6.3mm (IPX5) and ф12.5mm (IPX6). The water speed is 12.5 ±0.626L/min for IPX55 and 100 ±5L/min for IPX6


• Immersion tank Waterproof test Device (JL-7)

It is for IPX7 test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.


• Immersion tank Waterproof test Device (JL-8)

It is for IPX8 test. It can simulate a water depth of 0~50m. The water immersion tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer s request.


Detail

Datasheet


Water proof test for IPX3 and IPX4




Water proof test for IPX5 and IPX6




Water proof test for IPX8
