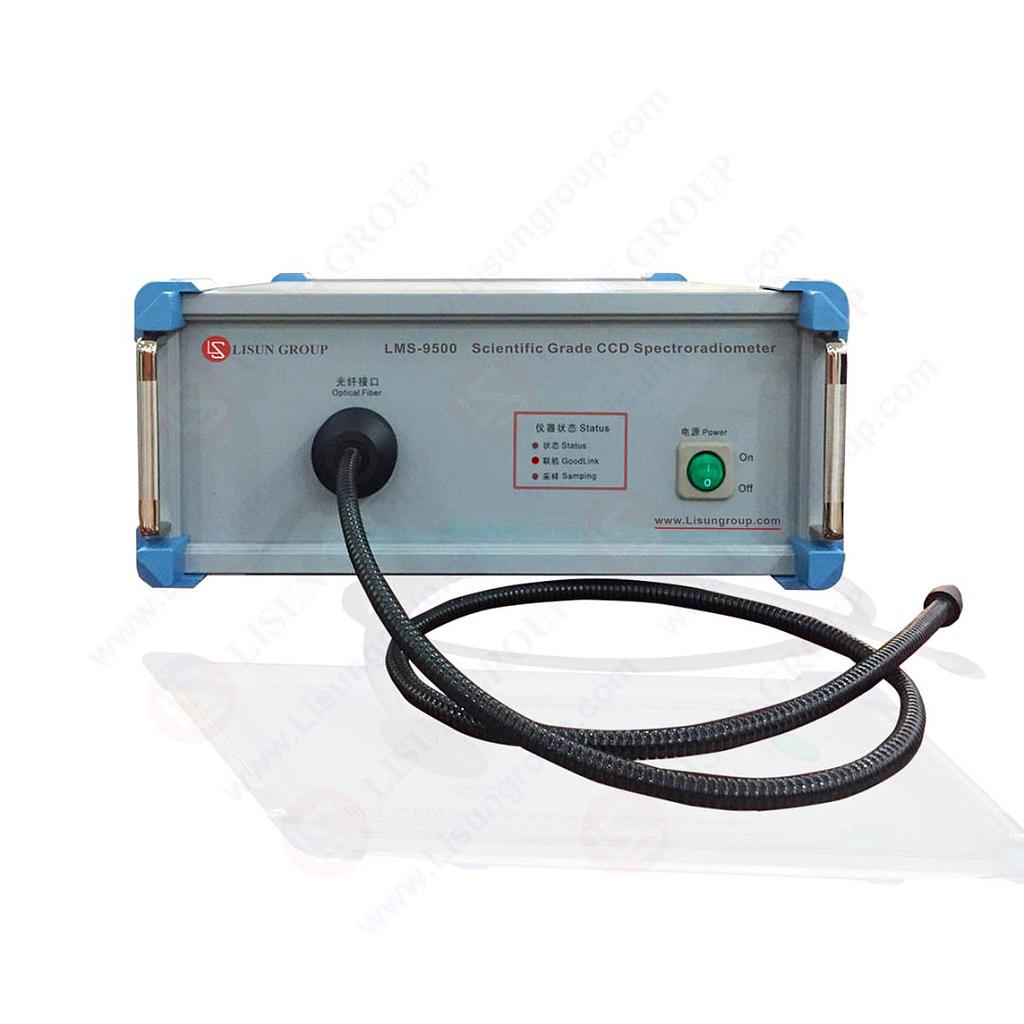

Lisun LMS-9500B 科学级CCD光谱辐射计 (380nm ~ 800nm)

♦ CCD Detector: Hamamatsu TE-cooled (Temp: -10°C ±0.05°C) high sensitivity back-thinned CCD (LMS-9500B); Hamamatsu high sensitivity back-thinned CCD (LMS-9500A)

♦ Spectral Range Wavelength: 380nm~800nm (200~800nm and 380~1050nm are option)

♦ Spectral Wavelength Accuracy: ±0.2nm

Resolution: ±0.1nm

Sample Scanning Steps: ±0.1nm

♦ Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.0015

♦ Correlated Color Temperature CCT: 1,500K~100.000K, CCT Accuracy: ±0.2%

♦ Color Rendering Index Range: 0~100.0. Accuracy: ±(0.3%rd±0.3)

♦ Photometric linear: ±0.2%, Stray light: <0.015%(600nm) and <0.03%(435nm)

♦ Time of integration: 0.1ms-60s

♦ Total flux testing method: Spectrum, Photometric and Spectrum with Photometric revision

♦ Spectrum senor: SMA905 optical fiber
