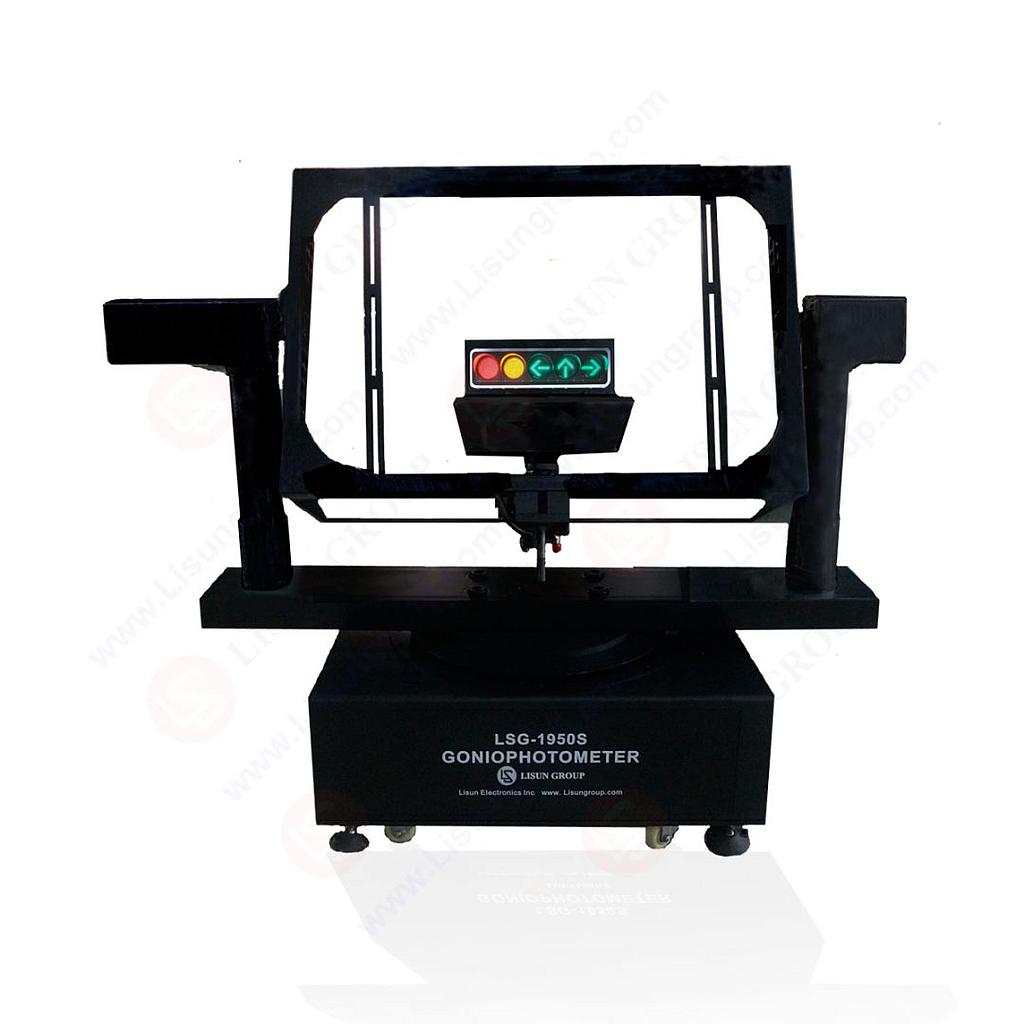

Lisun LSG-1950S Goniophotometer for Automotive and Signal Lamps (0.001lx~99.999lx)

1) It is designed according to EN, IEC, GB, ECE, SAE and FMVSS108.

2) The accuracy of angle: 0.1°, Resolution of angle: 0.001°

3) Luminosity Testing Range: Illuminance 0.001lx ~ 99.999lx; Light Intensity 1.0cd~10^7 cd(detector)

4) Accuracy of photometry: CIE Class A

5) Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%

6) Can test max lamp to 35kg

7) English version software can run in Win7/Win8/Win10


System Configuration:

A. Goniophotometric System

B. AC Standard Flux lamp

C. LS2012 Digital Power Meter

D. LSP-500VAS AC Power Source: 500W AC Power Source
