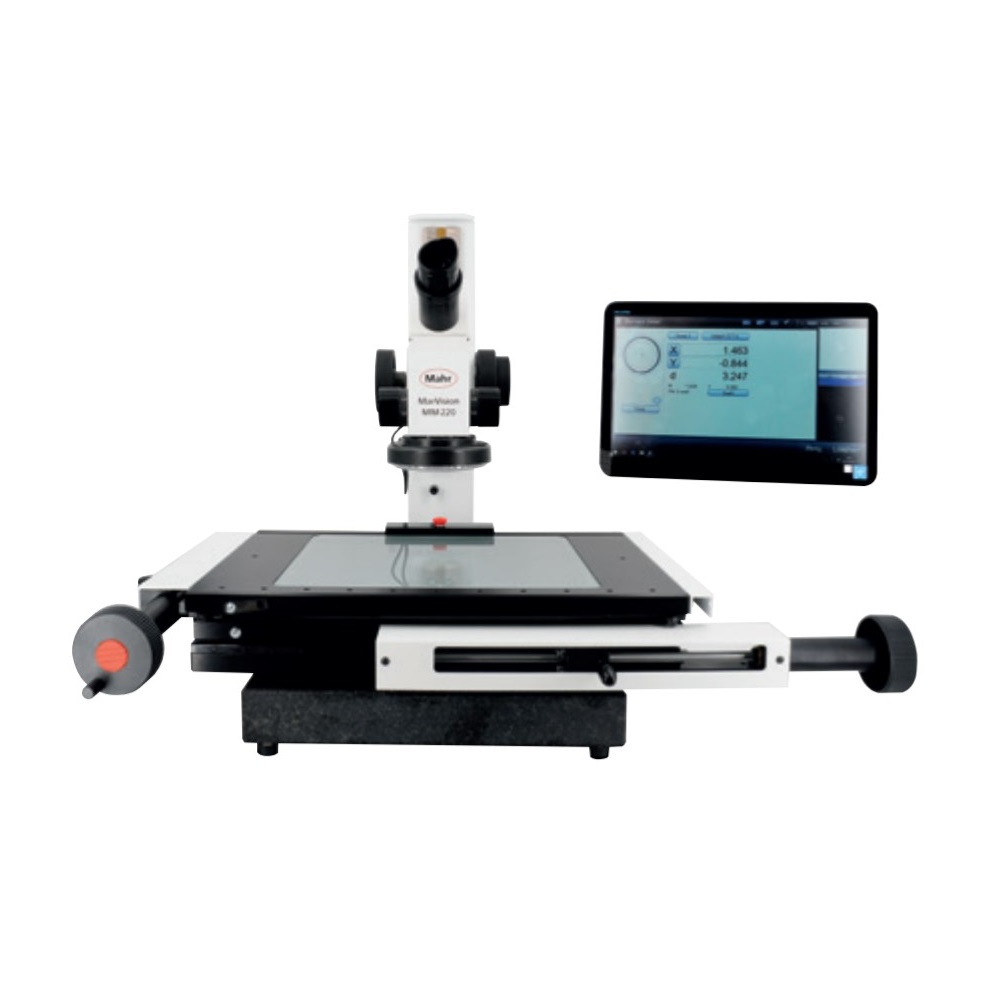

Mahr MM 220 车间测量显微镜,具有M2软件 (X/Y 100mm / 100mm, Z 200mm)

Operating and display unit: Tablet PC with M2 software

Measuring range X/Y (mm): 100 / 100

Z travel path (mm): 200

Maximum table load (kg): 20

Measuring system: Built-in incremental scale

Measuring system - resolution (mm): 0.001

Measuring system - E1 X/Y (µm): 1.9 + (L/100) L in mm

Measuring system - E2 XY (µm): 2.9 + (L/100) L in mm

Magnification: 8– 40x variable zoom

Image field - diameter (mm): 23  – 4

Max. height of test piece (mm): 185

Max. height of test piece / 0.5-fold (mm): 110

200 extension in Z (mm): 385

200 extension in Z / 0.5-fold (mm): 310

Illumination: LED Incident and transmitted light, individually adjustable

Energy supply: 230 V / 50 Hz

H x W x D (mm): 550 x 480 x 430
