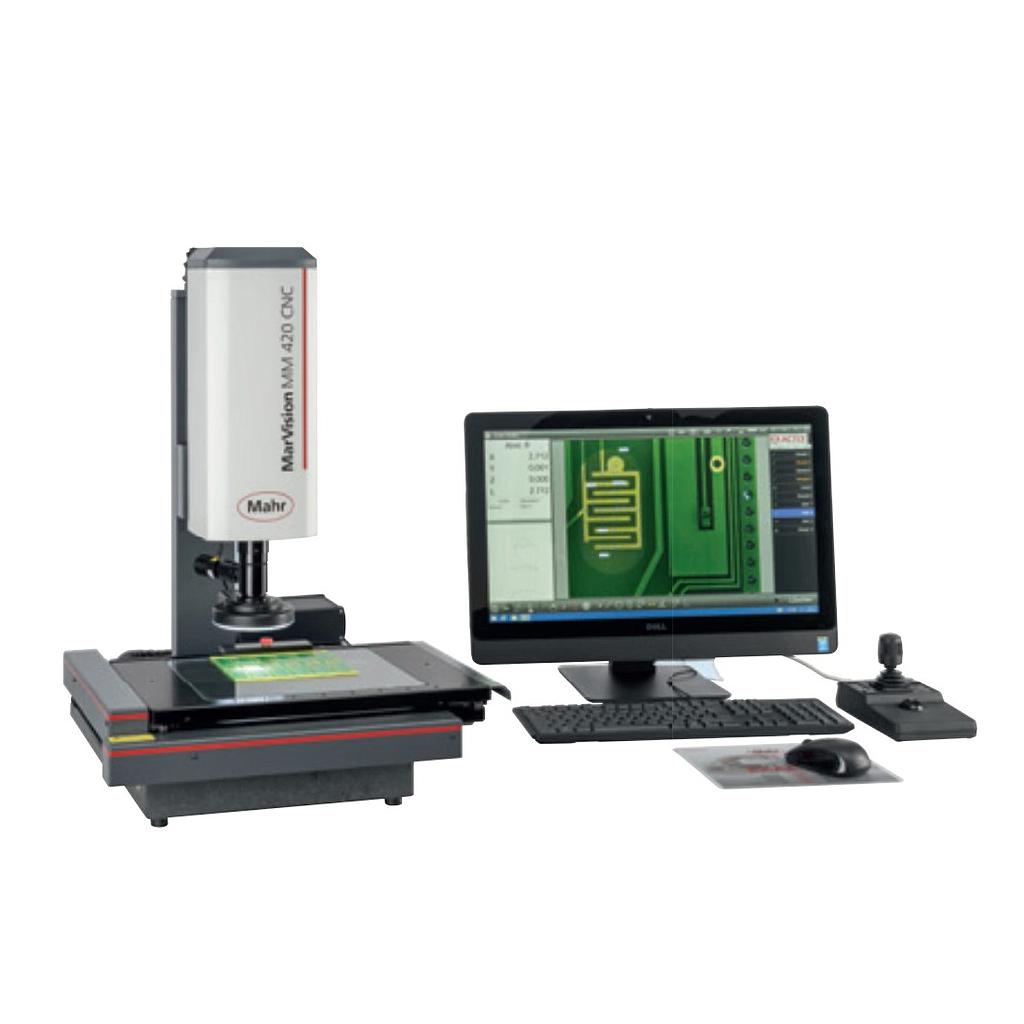

Mahr MM 420 CNC CNC 车间测量显微镜 (X/Y 200mm/100mm, Z 200mm)

Measuring range X/Y (mm):200 / 100

Z travel path (mm):200

Size of table (mm):370 x 210

Maximum table load(kg):20

Measuring system: Built-in incremental scale

Measuring system - resolution (mm):0.001

Measuring system - E1 X/Y (µm):1.9 + (L/100)

Measuring system - E2 XY (µm): 2.9 + (L/100)

Magnification:35  – 225x

Max. height of test piece (mm):200

Max. height of test piece / 0.5-fold(mm):110

Max. height of test piece with coax. (mm):200

Max. height of test piece with coax. / 0.5-fold (mm):110

Illumination: LED back and front illumination, adjustable

Energy supply: 230 V / 50 Hz


Detail
