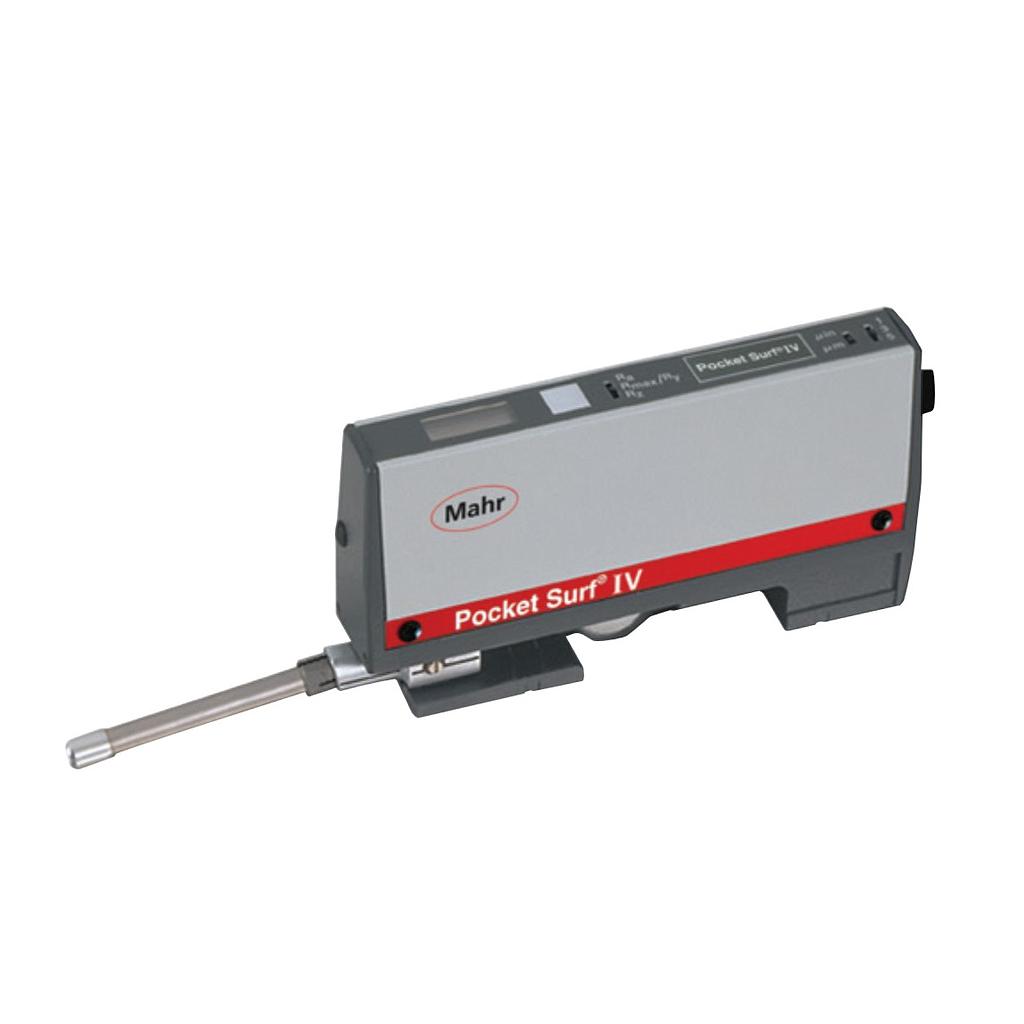

Mahr Pocket Surf IV Mobile Roughness Measuring Instrument (10 µm)

Parameters: Ra, Ry, Rmax, Rz

Stylus: 10 µm /.0004”

Data interface: RS232C, USB

Rechargeable batteries: Battery, 9V

H x W x D (mm): 140 x 76 x 6.35

Weight (kg): 1.03

Measuring principle: Skid probe system

Probe: Piezoelectric skid probe

Measuring range (mm): Ra–6.35µm/250Ry,Rmax,Rz–25.3µm/999µin

Profile resolution: 0.01 µm / 1 µin

Number n of sampling length according to ISO/JIS: Selected: 1–5

Measuring force (N): 15 mN
