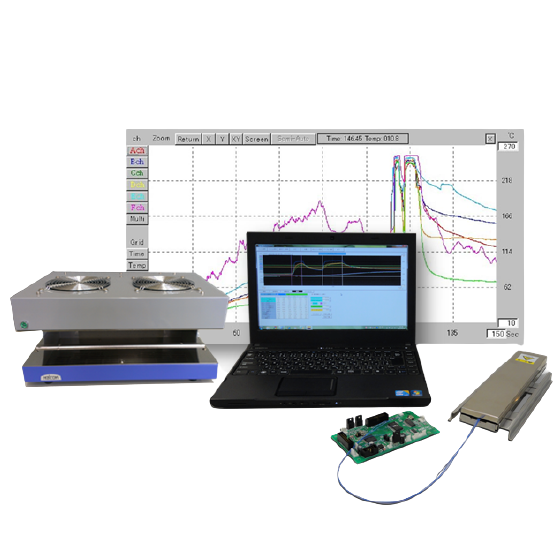

Malcom FCX-50 Flow Profiler (0~500℃)

Measuring temp. range: 0~500°C *1

Max Measuring time: Approx. 10 hours *1*2

Sampling time (sec.) / Max. storage time: 0.05sec./4h50min, 0.1sec./10h40min, 0.2sec./21h20min, 0.5sec./48h20min,

                                                                  1.0sec/96h40min, 2.0sec./193h20min, 4.0sec/386h40min, 8.0sec./773h20min

                                                                  Arbitrary setup possible

Temperature accuracy: ±1°C

Measuring points: 1-6 points

Heat resistant connector: Miniature connector

Input: Thermocouple JIS-K 110Ω max. 0.1 10m

Power supply: AAA battery Manganese batteries, Alkaline battery, Nickel-metal hydride

Outer dimensions

- Memory unit: 50(W)x170(D)x18(H)mm (w/o Heat resistant case)

- Heat resistant case: 65(W)x245(D)x25(H)mm

Data transmission method: USB, Bluetooth

Weight: Approx. 550g (Conveyor Attachment System are not included)
