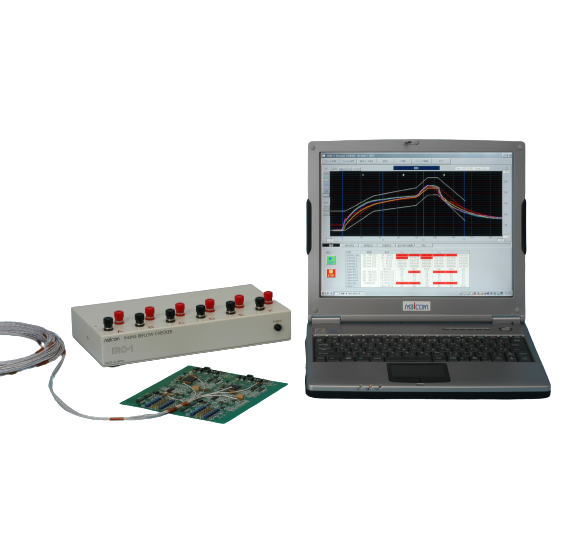

Malcom IRC-1 Real-time Reflow Checker (0-300°C)

Measuring temp. range: 0-300°C (resolution: 0.1°C)

Max Measuring time: 60 min

Sampling time: 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec.

Temp. accuracy: ±2°C

Measuring points: 1-6 points

Input: Thermocouple JIS-K 1000Ω max. (equivalent to φ0.1mm 8m)

Power supply: AC100V-240V 50/60Hz

Outer dimension: 250(D)x130(L)x55.2(H)(mm) (Terminal part: 15.2mm)

Weight: Approx.1.4kg

Reflow profile analysis software: AM-4IRC for Windows XP/2000
