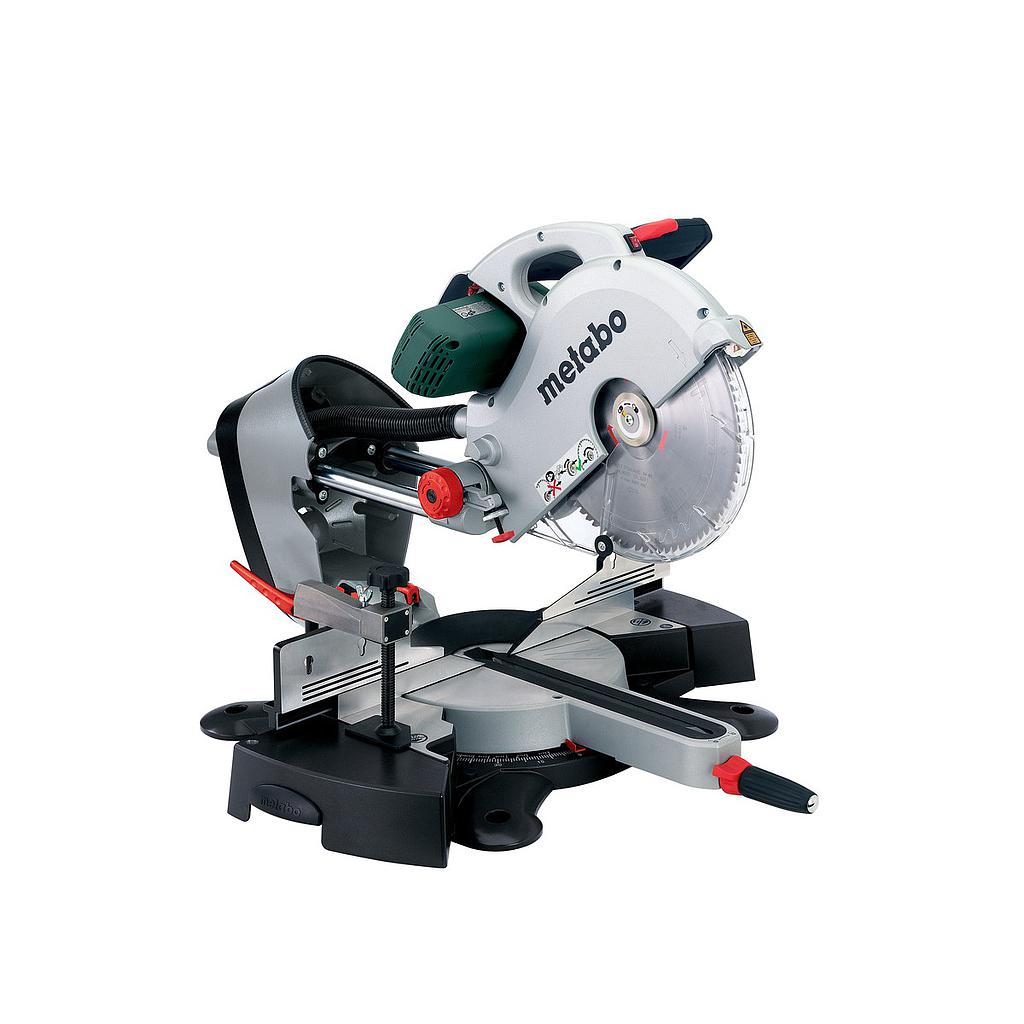

METABO KGS 315 PLUS 斜切锯 (220-240 V / 50 Hz)

Dimensions: 950 x 765 x 660 mm / 3.2 x 2.5 x 2.2 ft

Support surface: 1070 x 505 x 365 mm

Maximum cutting width 90°/45°: 320 / 223 mm // 12 9/16 / 8 3/4 "

Maximum cutting depth at 90°/45°: 120 / 76 mm // 4 11/16 / 3 "

Cutting capacity 90°/90°: 320 x 120 mm / 12 9/16 x 4 11/16 "

Cutting capacity 45°/45°: 223 x 76 mm / 8 25/32 x 3 "

Turntable setting left/right: 47 / 60 °

Saw blade tilt left/right: 46 / 46 °

Saw blade: 315 x 30 mm / 12 3/8 x 1.181 "

Rated input power: 1600 W

Rated input power S1 100%: 1600 W

Rated input power S6 20%: 2200 W

No-load speed: 3100 - 4100 rpm

Revolutions at rated load: 4100 rpm

Cutting speed: 51 - 68 m/s // 167 - 223 ft/s

Weight: 27.2 kg / 60 lbs kg

Cable length: 2.1 m / 7 ft

Noise emission

Sound pressure level: 89 dB(A)

Sound power level (LwA): 98 dB(A)

Uncertainty of measurement K: 2.6 dB(A)


Delivery

Carbide saw blade (84 teeth)

Adapter 35/58 mm

2 x Table length extensions

Material clamp

Accessories

SAWING

Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Further accessories for crosscut and mitre saws, Further accessories for band saws, Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

Occupational safety

Detail

Datasheet


Features

Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides

Enormous cutting performance due to extremely powerful universal motor and large saw blade

Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics

Sliding function for wide work pieces.

Easy transport thanks to ergonomically-designed handles and saw head lock

Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.

Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load

Metabo Quick for changing saw blades without tools

Soft start for long service life of motor and drive

Fast and precise setting of common angles using stop points

Sliding high rear fence profiles for safe sawing

Material clamp for secure fixing of the work piece from the top or front

Integrated, pull-out table width extensions made from die-cast aluminium

Depth guide for easy creation of grooves

All scales and operating elements are visible from the working position and can be operated intuitively
