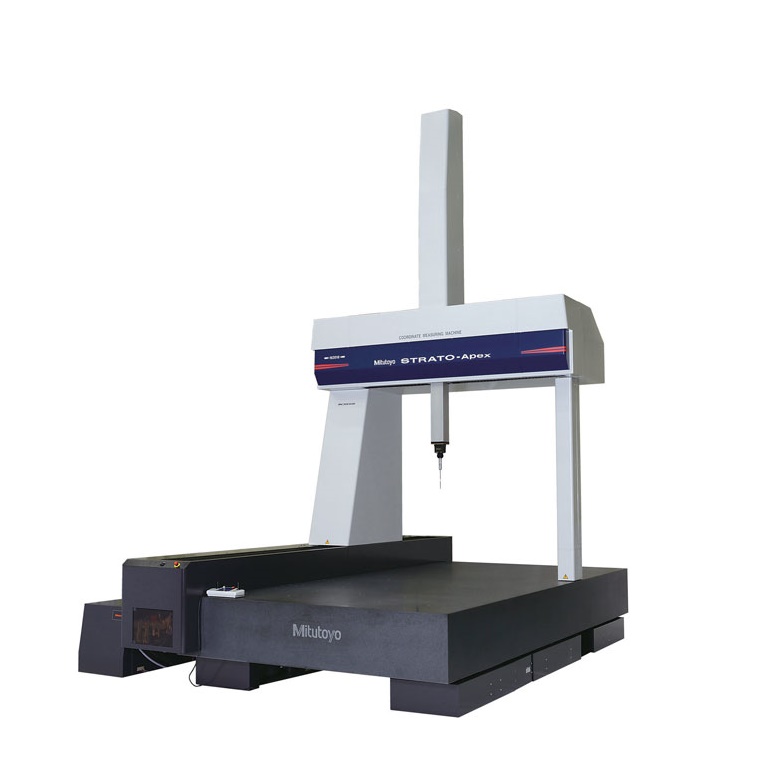

MITUTOYO STRATO-Apex 162012 CNC 坐标测量机 (1600mm 2000mm 1200mm)

Type: BRIDGE TYPE

X-axis: 62.99in 1600mm

Y-axis: 78.73in 2000mm

Z-axis: 47.24in 1200mm

Resolution: 0.0000019" (0.00005mm)

Guide Method: Air bearing on each axis

Speed

- Maximum Drive Speed 3D: 23.85”/s (606mm/s)

- Maximum Acceleration 3D: 0.13G (1,350mm/s2)

Work Table:

- Material-Granite

- Size: 72.83x129.13in 1850x3280mm

Tapped insert: M8x1.25mm

Work piece:

- Max.Load: 7,716lbs 3500kg

- Max.Height: 53.14in1350mm

Mass(incl. stand & controller): 24,582lbs 1115kg

Dimensions: 110.43 x 145.07 x 170.87" (2805 x 3685 x 2805mm)
