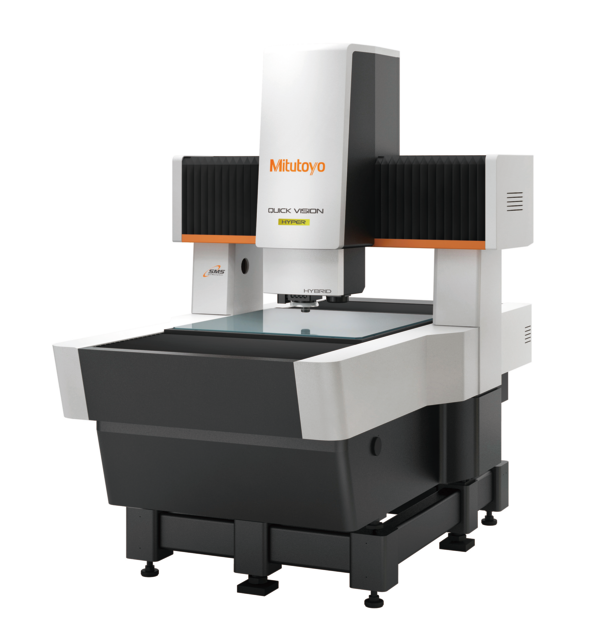

MITUTOYO QV-H606T1L-E 光学测量系统 (600 x 650 x 250 mm; 白色 LED; TAF)
制造商: MITUTOYO Model: QV-H606T1L-E P/N: 363-627-10 - 报价要求
- 报价要求
- 联系
Measuring range (X×Y×Z): 600 x 650 x 250 mm
Max. stage loading: 40 kg
Main unit mass (Including the special sub-base): 1465 kg
Vision measuring accuracy:
+ EUX,MPE/EUY,MPE = (0.8+2L/1000) µm
+ EUZ,MPE = (1.5+2L/1000) µm
+ EUXY,MPE = (1.4+3L/1000) µm
TP measuring accuracy: EX,MPE/EY,MPE/EZ,MPE= (1.7+3L/1000) µm
Resolution of scale: 0.02 µm
LAF Repeatability: σ≤ 0.8
Illumination unit: Contour illumination: White LED Vertical surface illumination: White LED PRL: White LED
Observation unit: Programmable power turret 1X-2X-6X
Tracking Auto Focus device: Yes
Thermal compensation function: Automatic
