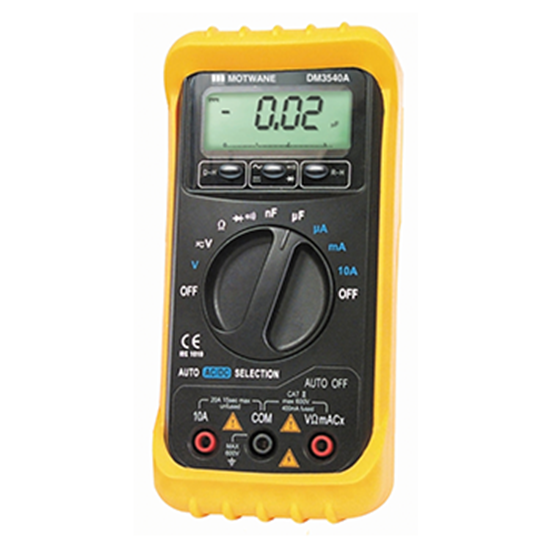

MOTWANE DM3540A Digital Multimeter

Manufacturer: MOTWANE

Model: DM3540A

Origin: India

Warranty: 12 months

AC Voltage:

3.2V; (±1.2% +5 digit) 1mV

32V; (±1.2% +5 digit); 10mV

320V; (±1.2% +5 digit); 100mV

750V; (±1.2% +5 digit);  1V

AC Current:

320µA;(±1.5% +5 digit) 0.1µ A; <160mV

3200µA;(±1.5% +5 digit) 1µ A; <1.6V

32mA;(±1.5% +5 digit) 10µ A; <1.6V

320mA;(±1.5% +5 digit) 100µ A; <160mV

10A;(±2.5% +5 digit)10m A; <60mV

Resistance:

320Ω; (±1.2% +5 digit) 0.1Ω

3.2KΩ; (±1.2% +5 digit); 1Ω

32KΩ; (±1.2% +5 digit); 10Ω

320KΩ; (±1.2% +5 digit);  100Ω

3.2MΩ; (±1.2% +5 digit); 1KΩ

32MΩ; (±1.2% +5 digit);  10KΩ

DC Voltage:

320mV; (±0.8% +2 digit) 100µmV

3.2V; (±1.2% +2 digit); 1mV

32V; (±1.2% +2 digit); 10mV

320V; (±1.2% +2 digit);  100V

1000V; (±1.2% +2 digit);  100V

DC Current:

320µA;(±1.5% +2 digit) 0.1µ A; <160mV

3200µA;(±1.5% +2 digit) 1µ A; <1.6V

32mA;(±1.5% +2 digit) 10µ A; <1.6V

320mA;(±1.5% +2 digit) 100µ A; <160mV

10A;(±2.5% +2 digit)10m A; <60mV

Accessories: leads, instruction manual, calibration certificates
