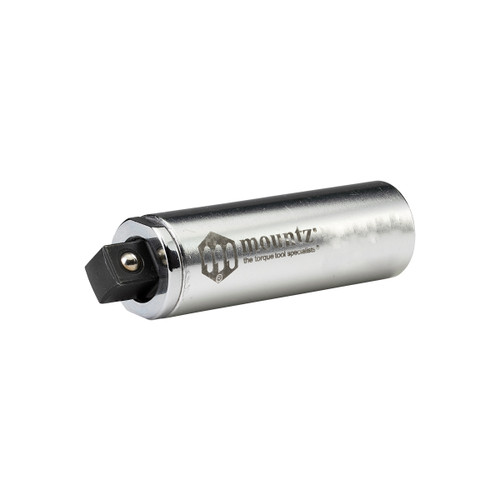

Mountz PTL 40i-Q PTL 预置扭矩限制器

  • 制造商: Mountz
    Model: PTL 40i-Q
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Input Driver type: 3/8” F/Sq
Output Driver type: 3/8” M/Sq
Torque range : 4.5 - 40 lbf.in/ 50.9 - 452 cN.m
L=  75 mm
Weight: 93 g

Details

datasheet

FEATURES:
Designed to be used “in-line” to limit torque for hand (static) applications. Can also be used as an overload protection device on most  applications where measuring a static overload is needed. Provides accurate process control as the unit prevents a fastener or bolt from being under and over tightened.
Repeatability within +/- 6% of pre-set torque value.
Various models that range from 1 to 85 lbf.in.
Designed to be used “in-line” to limit torque for hand (static) applications. For low torque applications.
Can also be used as an overload protection device on most applications where measuring a static overload is needed.
The rotary clucth mechanism ‘slips free’ when the pre-set torque value is reached, eliminating overtightening. The mechanism then automatically resets.
Pre-set using a torque analyzer.
Bi-directional operation and are calibrated in either the CW or CCW direction.
Lighweight and easy-to-use.
Non-length dependent. Bi-directional operation and are calibrated in either the CW or CCW direction.
