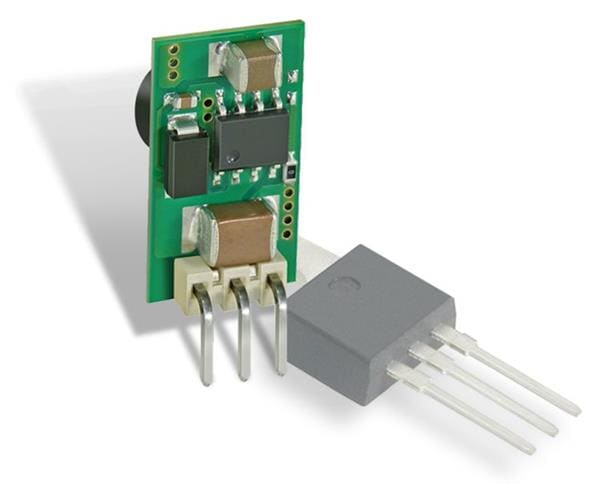

Murata Power Solutions 7805SR-C 非隔离 / PoL 2.5W 8-36VIN/5VOUT 0.5A DC/DC
制造商: Murata Power Solutions Model: 7805SR-C - 联系
Width: 10.4 mm (0.409 in)
Height: 10.5 mm (0.413 in)
Length: 19.1 mm (0.752 in)
Industry: Industrial
Output Type: Switching Regulator
Unit Weight: 2.495 g
Output Power: 3 W
Mounting Style: Through Hole
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 7.5 V
Input Voltage, Nominal: 24 V
Output Current-Channel 1: 500 mA
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
