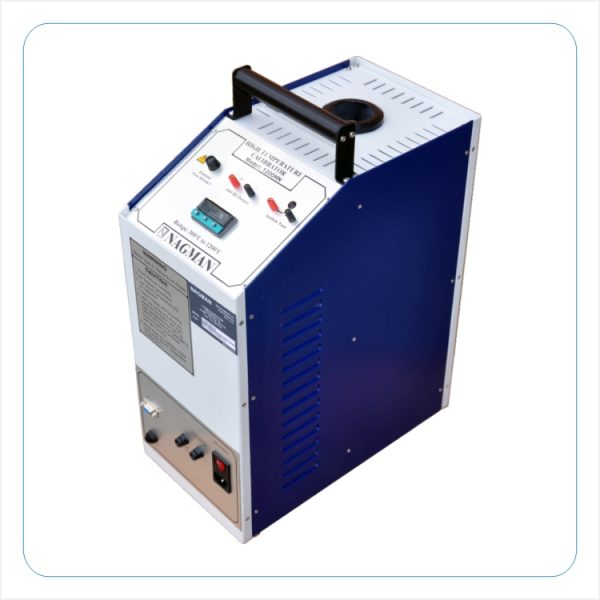

Nagman 1200 HN 干式高温校准炉 ( 300°C~1200°C, 1°C)

  • 制造商: Nagman
    Model: 1200 HN
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Range: 300°C to 1200°C

Resolution: 1°C

Accuracy: Better than ±3°C

Stability:  Better than ±0.5°C (below 600°C)

Stabilisation Time: 20 Minutes (above 500°C)

Temperature Readout: °C / °F Switcheable

Well Diameter: 45 mm

Immersion Depth: 150 mm

Dry Block Material: Inconel

Heating Time (to max.): 90 Minutes

Cooling Time (without well air cooling): 45 Minutes approx.

Multihole Thermowell: 4 x 7 mm + 3 x 9 mm or to suit

Switch Test facility/ Supply: Provided / 5 VDC (open)

Power Supply / Consumption: 230V AC / 50 Hz / 1850 W

Temperature Control: Auto-tune PID Control

Forced Air Cooling ** : Provision available

Transmitter Power Supply: 24V DC

Instrument Dimensions (L x D x H): 205 x 365 x 480 mm

Instrument Weight (approx.): 16 Kg

-Standard Delivery:

Basic Instrument

Cable for Thermostat Switch Test

Mains Cable

Insertion Tube - Multihole

Tool for Insertion Tube

Spare Fuses

1/4” BSP (F) Hose Adaptor with 6 mm Hose (1.5 Meter

Length)

RS-232 Computer Interface

Traceable Calibration Certificate

Instruction Manual

-Optionals:

“Caltemp” Calibration Software

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory

115V AC / 60 Hz Model


Details

• High Stability & Accuracy

• Auto-tune PID Control

• Forced Air Cooling provision

• RS-232 Computer Interface

• “Caltemp” Calibration Software – Optional

Datasheet
