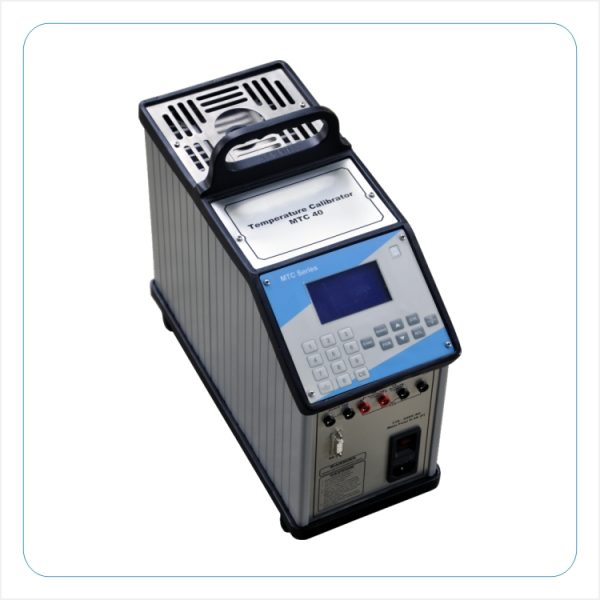

Nagman MTC 40 多功能干式温度校准炉 (-40°C~123°C, 0.1°C)

  • 制造商: Nagman
    Model: MTC 40
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Range: -40°C from Ambient to 123°C

Resolution: 0.1°C

Accuracy: ±0.3°C

Stability: ±0.05°C

Stabilisation Time: 7 Minutes

Temperature Readout: °C / °F Switchable

Well Diameter: 19 mm

Immersion Depth: 100 mm

Heating Time (Ambient to max.): 14 Minutes approx.

Cooling Time (to min.): 34 Minutes approx.

Switch Test facility: Provided

Interchangeable Thermowells: Single hole to suit 1/4″ Probe

Housing / Mounting: Bench-top

Power Supply / Consumption: 100 V to 240V AC, 50 to 60 Hz, 150 W

Instrument Dimensions (L x D x H): 160 x 365 x 350 mm

Instrument Weight (approx..): 9 Kg.

Measurement Capability

+ mA: 0 to 25 mA

+ Resistance: 0 to 500Ω / 3.5 KΩ

+ RTD: Pt100, Pt200, Pt500 & Pt1000

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Insertion Tubes (to suit 1/4“ & 1/2“ probes)

Tool for Insertion Tubes

Spare Fuses

RS-232 Computer Interface

“MTCCal” Calibration Software

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

Additional Single hole Insert (Maximum 15 mm)

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory


Details

•    Advanced – Micro-controller based Technology

•    128 x 64 Graphic Display

•    Touch Membrane Keypad

•    RS-232 Interface & Calibration Software

•    Fast & heat cooling

•    High Accuracy, Resolution & Stability
