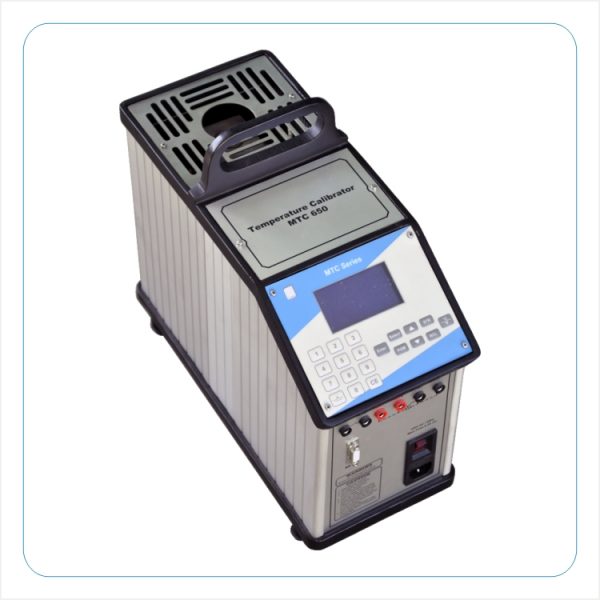

Nagman MTC 650 多功能干式温度校准炉 (50°C~650°C, 0.1°C)

  • 制造商: Nagman
    Model: MTC 650
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Range: 50°C to 650°C

Resolution: 0.1°C

Accuracy: ±0.6°C

Stability: ±0.05°C

Stabilisation Time: 15 to 20 Minutes

Temperature Readout: °C / °F Switcheable

Well Diameter: 25 mm

Immersion Depth: 110 mm

Heating Time (Ambient to max.): 20 Minutes approx.

Cooling Time max. (to 100°C): 42 Minutes

Switch Test facility: Provided

Interchangeable Thermowells: Single hole to suit 1/4″ & 1/2″ Probes.Other Sizes / Multihole available as optional.

Housing  / Mounting: Bench-top

Power Supply / Consumption: 230V AC, 50 Hz, 1230 W

Instrument Dimensions (L x D x H): 160 x 365 x 350 mm

Instrument Weight (approx.): 11 Kg.

Measurement Capability:

+ Thermocouples: ISA Types J, K, R, S, N

+ RTD: Pt100 IEC Std.

+ mA: 0 to 25 mA

+ mV: 0 to 100 / 1000 mV

+ Volt: 0 to 10 V

+ Resistance: 0 to 500Ω / 3.5 KΩ

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Insertion Tubes (to suit 1/4“ & 1/2“ probes)

Tool for Insertion Tubes

Spare Fuses

RS-232 Computer Interface

“MTCCal” Calibration Software

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

Additional Thermowells / Insertion Tubes (to choose from) :

 Single hole standard sizes to suit :

 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 7/8” & 3, 4, 5, 6, 7, 8, 10, 12, 13, 15, 17, 19 & 21 mm probes

 Multihole (Typical) : (1x6 + 1x8), (3x6), (1x10 + 1x4) mm

115V AC / 60 Hz Power Supply

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory



Details

•    Advanced – Micro-controller based Technology

•    128 x 64 Graphic Display

•    Touch Membrane Keypad

•    RS-232 Interface & Calibration Software

•    High Accuracy, Resolution & Stability
