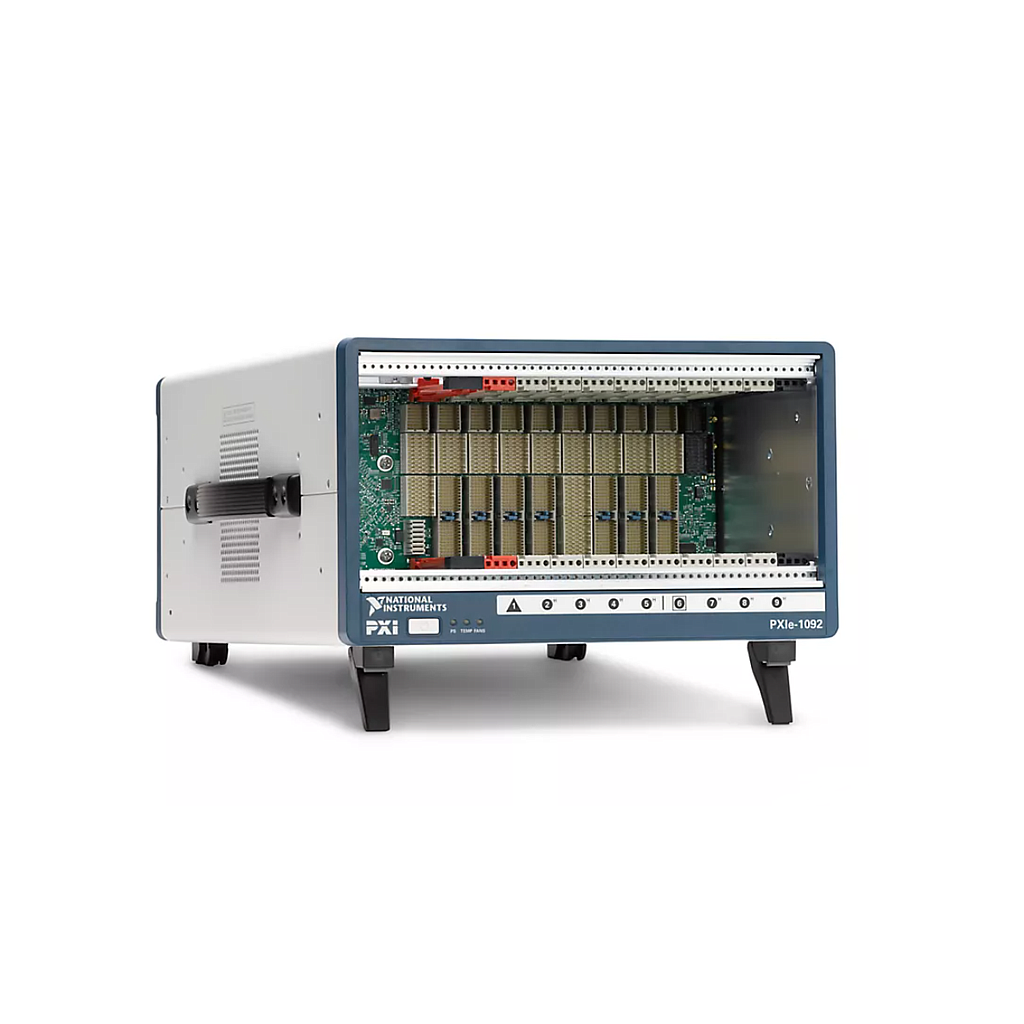

NI PXIe-1092 PXI 机箱 (10-slot, AC, 24 GB/s, OCXO Clock)
制造商: NI Model: PXIe-1092 P/N: 786991-01 - 联系
PXI Chassis Type: PXI Express
Slot Count: 10
Maximum System Bandwidth: 24 GB/s
Chassis Power Supply Type: AC
Slot Cooling Capacity: 82 W
Onboard Clock Type: OCXO
External Clocking: Yes
Number of PXI Express Slots: 1
Number of Hybrid Slots: 7
Number of PXI Slots: 0
System Timing Slot: Yes
External Trigger Access: Yes
Redundant HW Option: No
Houses PXI modules and connects them with a high-performance backplane that offers timing and synchronization capabilities.
PXI Chassis are compatible with PXI, PXI Express, and PXI hybrid modules and meet the cooling requirements of the most power-demanding PXI modules. You can also choose chassis options that minimize the overall system acoustic emissions. Chassis can provide up to 18 slots, with a mixture of both PXI and PXI Express module compatibility, and you can choose between AC and DC power options.
Datasheet
