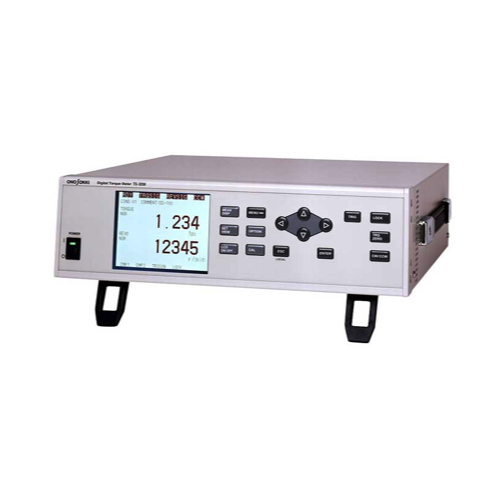

Onosokki TS-3200 Digital Torque Meter (0 to ± 10V/FS)

Type: Torque Detector Phase difference method

Digits: 5-digit

Unit: mN·m, N·m, kN·m

Accuracy: When combined with the detector (with 1 s gate time) N-0 compensation used: ±0.2 %/F.S. ±1 count (4-digit) N-0 compensation not used: ±0.5 %/F.S. ±1 count (4-digit)

Type: REVO-1 Sinewave input signal detected by an electro-magnetic detector such as the MP-9100 and REVO-2 Square Waveform for magnetic-electric rotation detector such as MP-981/MP-9820

Digits: 5-digit 1-99999

Unit: r/min, r/s, Hz

Accuracy: When used in combination with a torque detector (The display renewal rate is 1 s.) N-0 compensation used:±0.2 %/F.S. ±10 mV (4-digit) N-0 compensation not used: ±0.5 %/F.S. ±10 mV (4-digit)

Torque: 0 to ± 10V/FS

Revolution: 0 to 10V/FS

Interface: Analog Output, Comparator, BCD, RS-232C, GP-IB, Pulse Output or LAN interfaces as optional functions

Power: 100 to 240 VAC ± 10%, 50/60 Hz

Weight: Approx. 5 kg

Notes

Standard: Instruction manual, AC power cord, connector for remote.
