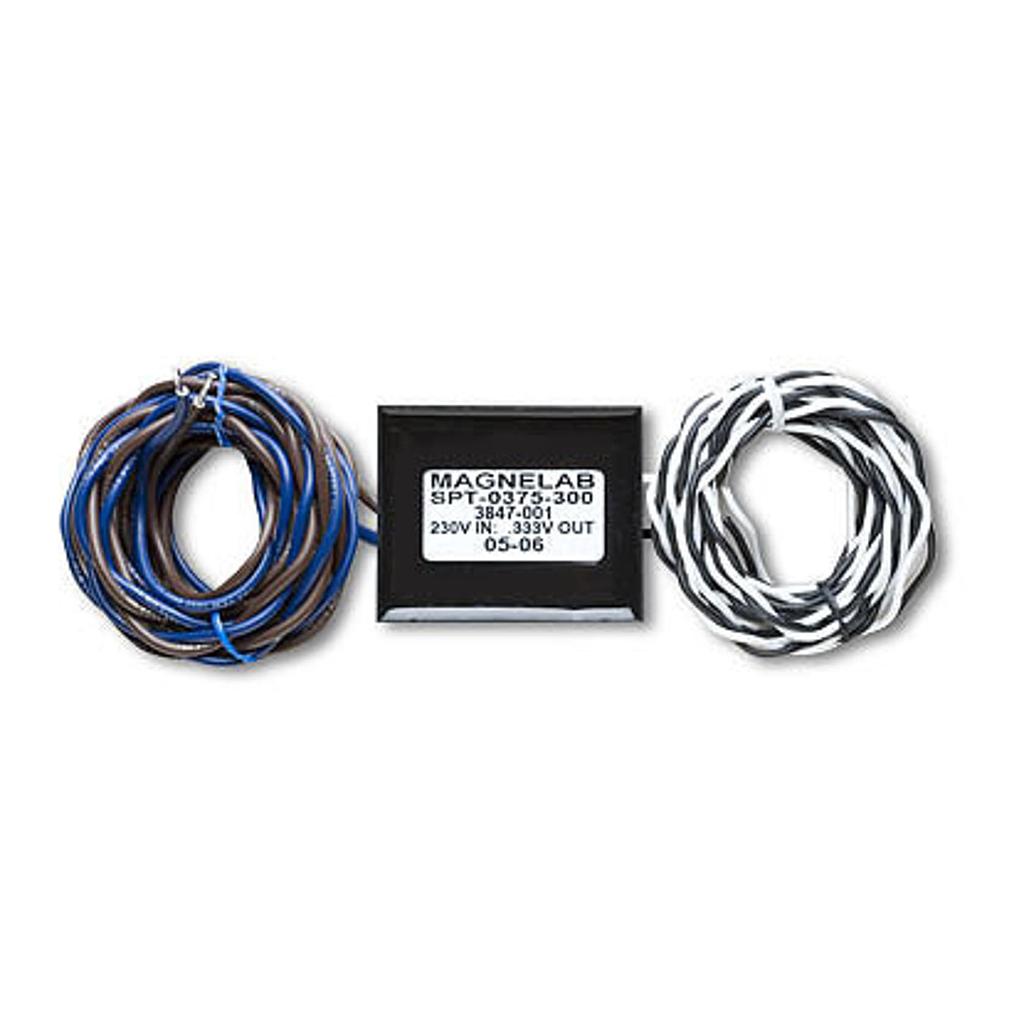

Onset T-MAG-SPT-300 AC Potential Transformer SensorAC Potential Transformer Sensor (300 V AC)
制造商: Onset Model: T-MAG-SPT-300 P/N: T-MAG-SPT-300 - 联系
Max. Input voltage: 300 Volts AC
Accuracy: ±1% (from 10% to 130% of rated voltage)
Phase angle: <1 degree
Output signal to FlexSmart Module: 0.333 Volt at rated input voltage (0 to 230 Volts AC)
Connections: 8-ft PVC insulated wire, UL1015
High voltage input: #14 AWG, blue/brown
Low voltage output: #22 AWG twisted pair, black/white
Construction: Epoxy filled ABS plastic
Dimensions: 5.5 cm x 3.9 cm x 3.1 cm (2.2" x 1.6" x 1.2")
Weight: 491.2g (17.33oz)
Number of data channels: 1
