Interior chamber: 68 x 48 x 25 cm
Sliding sample carrier: 60 x 40 cm
Dimensions: 77 x 62 x 64 cm
Weight: about 50 kg
300 W (UVA, UVB, UVC, D65)
600W (UV-A+ )
Mains: 230 VAC, 3 A,
Number of lamps: 20
Sample temperature: 25 °C +/- 5°C
spectral ranges: 1 standard, 2-4 optional
Irradiance UVA: 8 mW/cm²
Irradiance UVA+: 15 mW/cm²
Irradiance UVB: 2.4 mW/cm²
Irradiance UVC: 10 mW/cm²
Illuminance D65: 20000 lux
Lamp lifetime: up to 10000 h

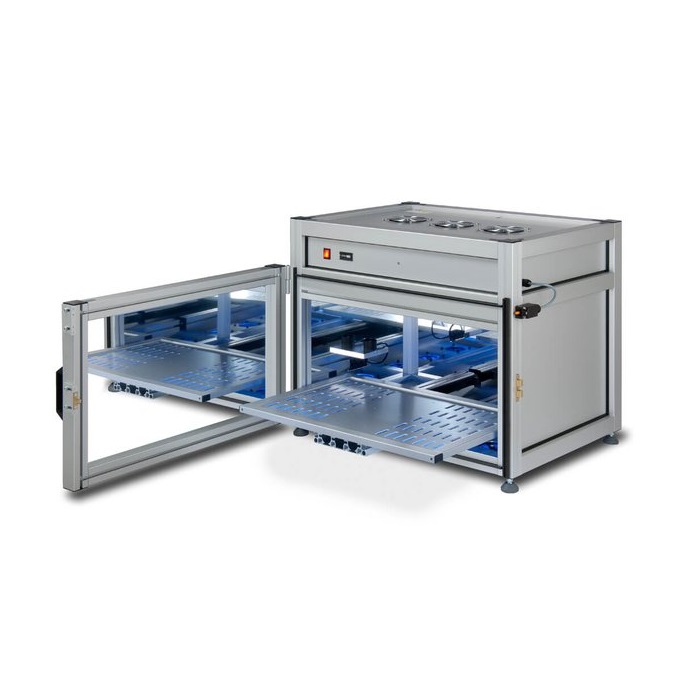

The BS-03 is a medium-sized, rugged irradiation chamber for time- or dose-controlled irradiation of samples with UV or visible light. The chamber can be fully equipped for one of the spectral ranges UVC, UVB, UVA, or daylight D65 to achieve the highest irradiance. Alternately, the use of two separately controlled lamp groups for different spectral ranges allows for especially flexible operation of the chamber.
The interior irradiation chamber has a base area of 68 x 48 cm and a height of 25 cm. The sliding sample carrier facilitates loading and unloading. With a load of up to 20 kg, this can withstand all demands. The sample chamber operating temperature is about 25°C so that thermal damage to the specimen is avoided. Due to the high uniformity of the irradiation, the samples may be positioned in any order.
The irradiation control UV-MAT can control two spectral ranges separately and achieves a constant dose independent of lamp aging, contamination or temperature. The dose is measured with calibrated sensors. For this purpose, the sensor already contains an extremely precise analog-digital converter and a temperature sensor. The integrated diffuser ensures the required cosine correction. Excellent long-term stability is achieved through the use of appropriate materials. The sensors are calibrated with traceability to PTB (Physikalisch Technische Bundesanstalt, the German national test authority); after being calibrated, they are supplied with a factory calibration certificate. The memory in the sensor contains all sensor identifications and the calibration history.
The UV-MAT can optionally be controlled by a PC. This allows multi-stage irradiation and documentation of the irradiation.
