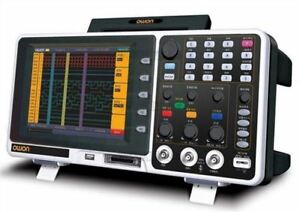

OWON MSO7102T混合数字示波器带逻辑分析仪(100M,1GS / s,2CH,2M)

  • 制造商: OWON
    Model: MSO7102T
    保障: 12 month
    • 报价要求 报价要求
  • 14,100,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: OWON

Model: MSO7102T

Warranty: 12 months


Bandwidth: 100MHz

Sample Rate: 1GS/s

Vertical Resolution (A/D)): 14 bits

Record length: 2M record length

Waveform Refresh Rate: 70,000 wfms/s

Horizontal Scale (s/div)): 2ns/div - 1000s/div, step by 1 - 2 - 5

Channel: 2

Display: 8" color LCD, 8.0'' color LCD ,640 × 480 pixels

Vertical Sensitivity: 2mV/div - 10V/div

Trigger Mode: Edge, Video, Alternate, Pulse, and Slope

Acquisition Mode Normal,Peak Detect,and Average

Record Length 2M points

Waveform Storage: 4 waveforms

Waveform Math: +, -, ×, ÷,  FFT

Battery: 7.4V 8000mAh (optional)

Dimensions (W × H × D): 370 × 180 × 120 (mm)

Weight (without package): 2.20 kg


Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe Adjust, Probe, Soft Bag (optional), Battery (optional); Logic analyser Module
