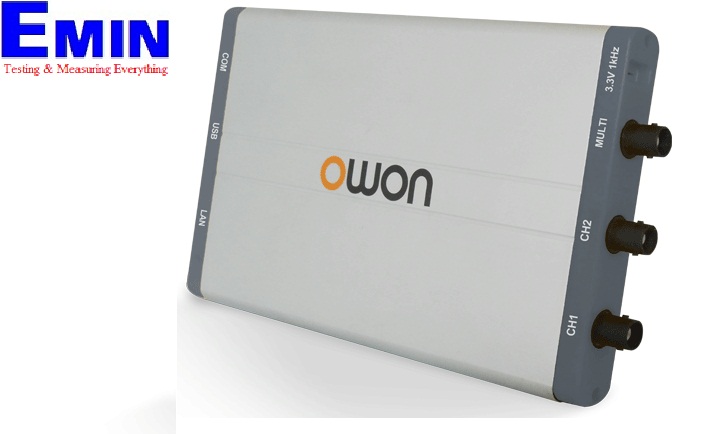

Owon VDS6102A PC 示波器

Manufacturer: Owon

Model: VDS6102A

Warranty: 12 months


Bandwidth

VDS6102A

8-bit mode 100 MHz

12-bit mode 100 MHz

14-bit mode 20 MHz

Vertical Resolution (A/D):  8 bits/12 bits/14 bits

Sampling Rate

2-CH working

8-bit mode 500 MS/s

12-bit mode 250 MS/s

14-bit mode 100 MS/s

1-CH working

8-bit mode 1 GS/s

12-bit mode 500 MS/s

14-bit mode 100 MS/s

Rise Time: ≤ 2.3 ns

Horizontal Scale: (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5

Sampling Mode: sample, peak detect, average

Channel Q'nty 3 (2 main one + 1 auxilary)

Record Length: max 10M

Input Coupling: DC, AC, ground

Input Impedance: 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF

Max Input Voltage : 40 V (DC + AC Peak)

DC Gain Accuracy: 2% when ≥ 2 mV

Vertical Sensitivity: 2 mV/div - 5 V/div

Trigger Type: edge, video, slope, pulse2

Trigger Mode: auto, normal, single

Line/Field Frequency (video): supported standards: NTSC, PAL and SECAM broadcast systems

Automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty

Function Generator Part

Standard Waveforms: sine, square, ramp, and pulse

Frequency Output: 5 MHz

Sampling Rate: 25 MSa/s

Channel Q'nty: 1

Vertical Resolution: 10 bits

Amplitude Range: 10 mVpp – 5 Vpp

DC Offset Range (AC+DC): ± 2.5V

Output Impedance: 50 Ω (typical)

General Part

Communication Interface:  USB device (type-C), USB host (Wi-Fi extension supported), LAN

Wi-Fi Module: available in option

Power Source: 5 - 15 VDC / 1.2A

Power Consumption: ≤ 8 W

Device Dimension: w/h/d 190 x 120 x 18 mm

Weight:  0.38 kg
