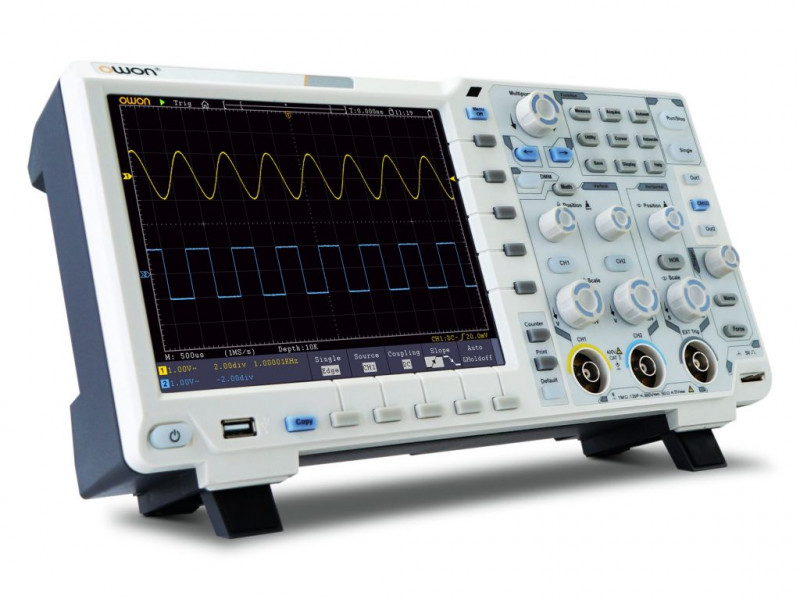

Owon XDS3062A 数字存储示波器(60MHz,2 +1(外部))

  • 制造商: OWON
    Model: XDS3062A
    • 报价要求 报价要求
  • Price (exclude tax) 10,528,000 VND
    Price (include tax) 11,580,800 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Bandwidth 60MHz
Sample Rate 1GS/s
Record length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)
Max Input Voltage 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms DC Gain Accuracy ±3%
Input Coupling DC, AC, and GND Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,  and CAN (optional)
Bus Decoding I2C, SPI, RS232, and CAN (optional)
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,
Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,
+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,
+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Countn
Waveform Math +, -, ×, ÷, FFT Waveform Storage 100 waveforms
Accessories: Power Cord, CD Rom, Quick Guide, USB Cable Probe
