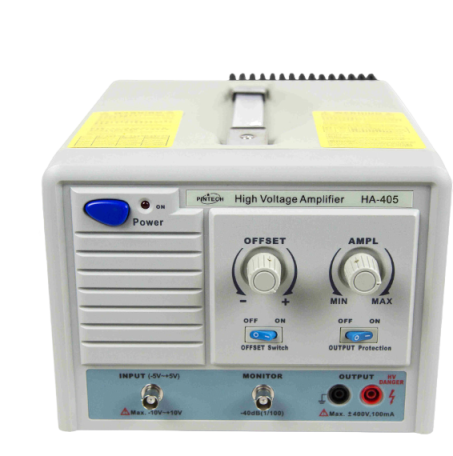

Pintech HA-405 高压放大器 (1MHz, 400Vp-p)
制造商: Pintech Model: HA-405 - 联系
Output Voltage( DC Max): 200V DC
Output Voltage(AC Max): 400Vp-p
DC Current(Max): 200mA
AC Current(Max): 400mAp-p
Output Power(Max): 40VA
Frequency response (Bandwidth): 1MHz/200Vp-p
Slew Rate: 500V/μs
Output impedance: 50Ω
Protect resistor: 2kΩ/80watt
Safe Loading: ≧1kΩ/400Vp-p
Input Voltage upper limit: 0~5Vp-p/20Vp-p
AMPL: 0~90 (10 turn knob)
OFFEST: 0 or± 200V (10-turnknob switch)
Monitor: 100:1
Output protection:
1. Output dedicated FUSE
2. Protection SW (switch)
3. Microcomputer controls the overload protection circuit
Weight: 5.2kg
size: 310*270*95mm
