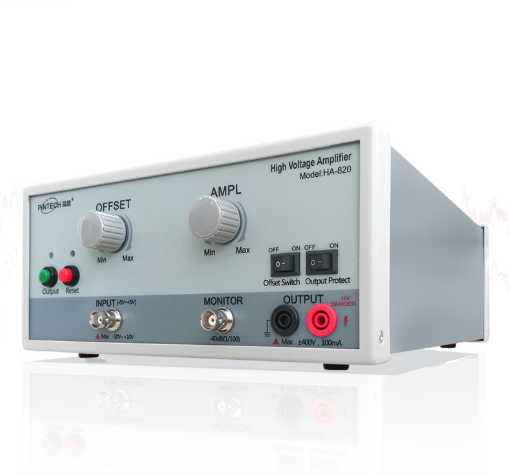

Pintech HA-820 高压放大器 (200kHz, 800Vp-p)
制造商: Pintech Model: HA-820 - 联系
Output Voltage( DC Max): 400V DC
Output Voltage(AC Max): 800Vp-p
DC Current(Max): 100mA
AC Current(Max): 200mAp-p
Output Power(Max): 40VA
Frequency response (Bandwidth): 200kHz/400Vp-p
Slew Rate: 300V/μs
Output impedance: 100Ω
Protect resistor: 5kΩ/35watt
Safe Loading: ≧4kΩ/800Vp-p
Input Voltage upper limit: -5V~+5V(Max -10V~+10V)
AMPL: 100
OFFEST: ± 400V
Monitor: 100:1
Output protection:
1. Output dedicated FUSE
2. Protection SW (switch)
3. Microcomputer controls the overload protection circuit
Weight: 5.4kg
size: 320*260*150g
