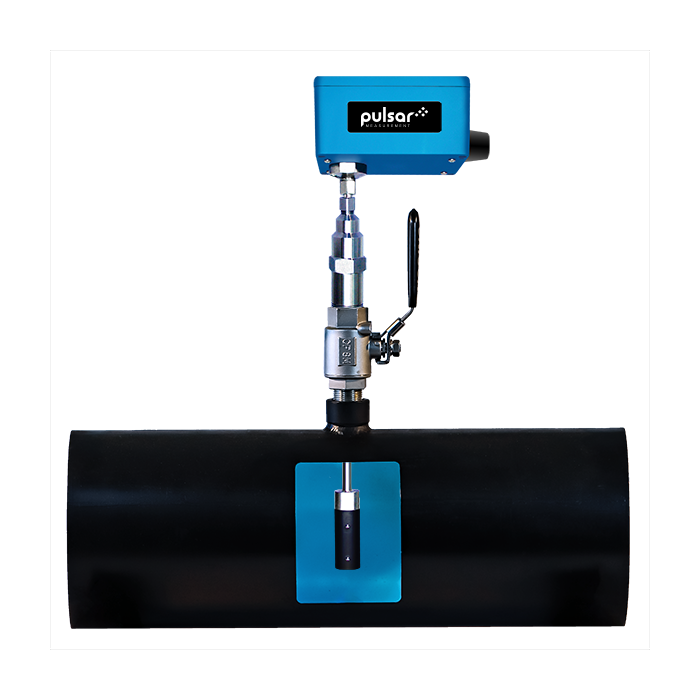

Pulsar measurement ISM 5.0 Electromagnetic Flow Meter

Flow Measurement Range: 0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s), 200:1 turndown

Accuracy: • ±1.0% of reading from 0.61 m/s to 6.2 m/s (2 ft/s to 20 ft/s)

• ±0.0061 m/s (0.2 ft/s) below 0.61 m/s (2 ft/s)

Nominal Pipe Diameter: 76.2 mm to 1.8 m (3 in to 6 ft)

Liquid Temperature

Range: -26 °C to +121°C (-15 °F to +250 °F)

Operating Temp.

(Electronics): -28 °C to +65°C (-20 °F to +150°F)

Maximum Operating

Pressure: 14 bar (200 psi)

Pressure Drop: Less than 0.007 bar (0.1 psi) at 3.6 m/s (12 ft/s)

Conductivity Range: 20-60,000 μSiemens/cm

Power Input: 20-28 V DC, 250mA at 24 V DC (6 Watts) 20-28V AC, 50-60Hz, 8VA

Analog Output: Selectable 4-20mA, 0-5 V or 0-10 V

Frequency Output: 0-15 V peak pulse, 0-500 Hz

Scalable Pulse Output: • Isolated solid state dry contact rated 50 V DC, 100mA

• maximum Pulse duration: 0.5 sec, 1 sec, 2 sec, or 6 sec

Signal Cable Length: 7.6 m (25 ft) PVC jacketed multi-conductor

Electronics Enclosure: IP68 powder-coated cast aluminum

Wetted Materials: 316 L stainless steel, polypropylene

Approximate Shipping

Weight: 2.7 kg (6 lb)
