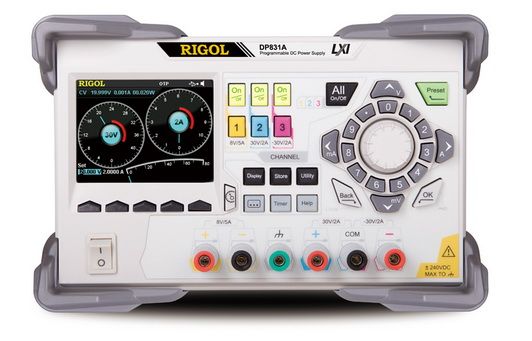

Rigol DP831A 可编程线性直流电源(5VDC / 5A,+ 30VDC / 2A,+ 30VDC / 2A,3CH)

0~5VDC/5A, 0~+30VDC/2A, 0~+30VDC/2A

3 Outputs,Max. Total Power up to 195W

Low Ripple Noise: <350 uvrms="" 2mvpp="" span="">

Excellent Linear Regulation Rate and Load Regulation Rate

Fast Transient Response Time: <50us

Channel isolation: CH1 || CH2,CH3

Standard OVP/OCP/OTP protection functions

Standard Timing function

Built in V,A,W measurements and waveform display

Support Output Delay, Analysis, Monitor, Preset functions

Independent control for each channel

3.5 Inch TFT Display

Connectivity: USB Host& Device, LAN(LXI Core Device 2011), RS232,Digital IO,Support USB-GPIB(Opt.)

Manufacturer: Rigol

Detail
Advanced functions

  • Large screen display , novel and beautiful appearance


  • Abundant connectvity
  • DP832A GUI
  • LAN Setup










  • Output Delay



  • Timing Output












  • V/A/W Display

  • Output Analysis Function












  • Monitor Setup



  • Trigger In/Out












  • Order Info
