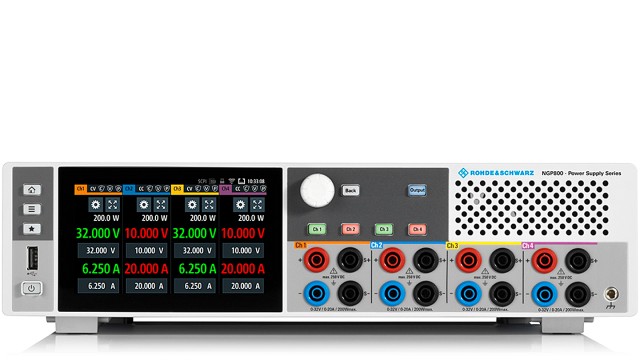

Rohde & Schwarz NGP814 直流电源 (800 W, 2 5 32 V/20 A, 2 × 64 V/10 A, 4 channels)

  • 制造商: Rohde & Schwarz
    Model: NGP814
    P/N: 5601.4007.04
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Number of output channels: 4

Total output power: Max 800 W

Maximum output power/CH: 200 W

Output voltage/CH: 0 V to 64 V

Output current/CH: 0 A - 10 A

Voltage ripple and noise: 20 Hz to 20 MHz: < 3 mV (RMS), < 30 mV (Vpp) (meas.)

Current ripple and noise: 20 Hz to 20 MHz: < 3.5 mA (RMS) (meas.)

Load regulation: load change: 10% to 90%

Voltage:

  (CH1, CH2) < 0.01% + 5 mV

  (CH3, CH4) < 0.01% + 10 mV

Current: < 0.01% + 5 mV

Programming accuracy:

 Voltage:

  (CH1, CH2) < 0.05% + 5 mV

  (CH3, CH4) < 0.05% + 10 mV

Current:

  (CH1, CH2) < 0.1% + 20 mA

  (CH3, CH4) < 0.1% + 10 mA

Display: TFT 5" 800 × 480 pixel WVGA touch

Interfaces: USB-TMC, USB-CDC (Virtual COM), LAN

Temperature:

 Operating temperature range: +5°C to +40°C

 Storage temperature range: –20°C to +70°C

Humidity: noncondensing 5% to 95%

Mains nominal voltage: 100 V to 250 V

Mains frequency: 50 Hz to 60 Hz

Maximum power consumption: 650 W

Dimensions: W × H × D 362 mm × 100 mm × 451 mm (14.25 in × 3.94 in × 17.76 in)

Weight: 7.5 kg (16.5 lb)

Accessories supplied:

Base unit

Set of power cables

Terminal blocks

Quick start guide


Details

Datasheet

Rohde & Schwarz was founded 85 years ago and is headquartered in Munich. The independent technology group develops, produces and markets a wide range of innovative communications, information and security products for industry and government customers.



The company has grouped its activities into four business fields in order to address the different markets with dedicated products: Test and measurement, Broadcast and media, Aerospace | defense | security and The networks and cybersecurity.


Test and measurement: Rohde & Schwarz is one of the world's leading manufacturers of electronic test and measurement and communications equipment. From the very beginning Rohde & Schwarz has driven innovation in RF technology. We have always taken up the challenge of pushing the limits of what is technically feasible. We aim to provide our customers with the market’s highest-performance solutions for their applications at a good value price.
