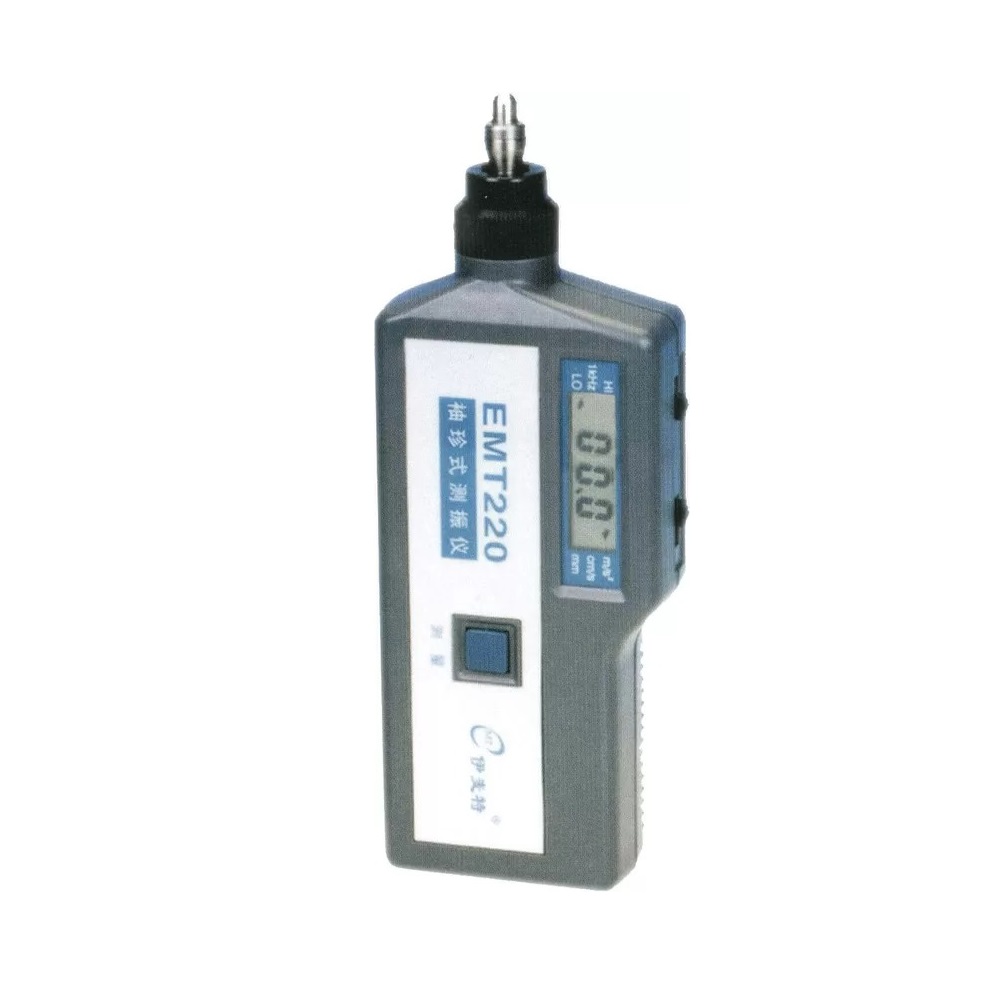

SADT EMT220 便携式振动计 (0,01~19,99cm/s)

Vibration measurement scale:

        Displacement: 0.001~1.999 mm (peak to peak)

        Velocity: 0.01~19.99 cm/s (r.m.s. value)

        Acceleration: 0.1~199.9 m/s2 (peak value)

        Vibration acceleration: ≤ 199.9 m/s2 (peak value)

Temperature measurement scale: -20～400℃ (only for EMT220 with temperature-measuring function)

Accuracy

        Vibration measurement: ±5％Measurement value; ±2 Digits

        Temperature measurement: ±1% Measurement value; ±1 Digit

Vibration Frequency Range:

        10~1 kHz (Normal type)

        5~1 kHz (Low-frequency type)

        1~15 kHz (only at “HI” position for acceleration)

Display: Digits liquid crystal display

Sample period: 1 second

Vibration measurement value readout:

        Displacement: Peak to peak value (r.m.s.×2√2)

        Velocity: Root mean square (r.m.s.)

        Acceleration: Peak value (r.m.s.×√2)

Readout-keeping function: Readout of vibration / temperature value can be remembered after releasing the Measure Key (Vibration / Temperature Switch)

Output Signal: 2V AC (peak value) (load resistance above 10 kΩ at full measuring scale)

Power supply: 6F22 9V laminated cell

Power on / off:

        Battery life about 30 hours for continuous use

        Power up when pressing Measure Key

        Power automatically shut off after releasing the Measure Key for one minute

Operating condition:

        Temperature: 0~50°C

        Humidity: ≤ 90% RH

Dimension: 185mm×68mm×30mm

Net weight: 200g
