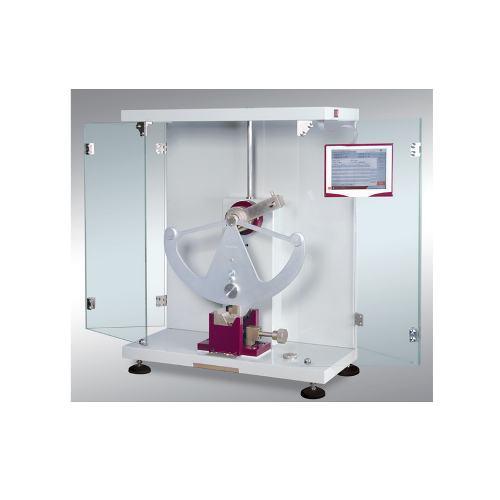

Samyon HIT-2494 工程塑料测试仪 (3.8m/s)

Application: Charpy/izod Impact Tester is a high performance impact test designed to precisely determine the absorbed impact energy and resistance to breakage of plastic specimens.

Standard: ISO 179, ISO 180, ASTM D 256 and the equivalent.

Parameter:

Impact speed: 3.5m/s, 3.8m/s

Energy levels:

For lzod: 5.5J, 11J, 22J

For Charpy:  7.5J,15J,25J, 50J

Measurement resolution: 0.01J

Span of Charpy: 62mm

Radius of striking edge(Charpy): 2mm±0.5mm

Angle of striking edge(Charpy): 30°±1°

Radius of striking edge(Lozd): R=0.8mm±0.2mm

Location of striking edge above top surface of support(Lozd): 22mm±0.05mm
